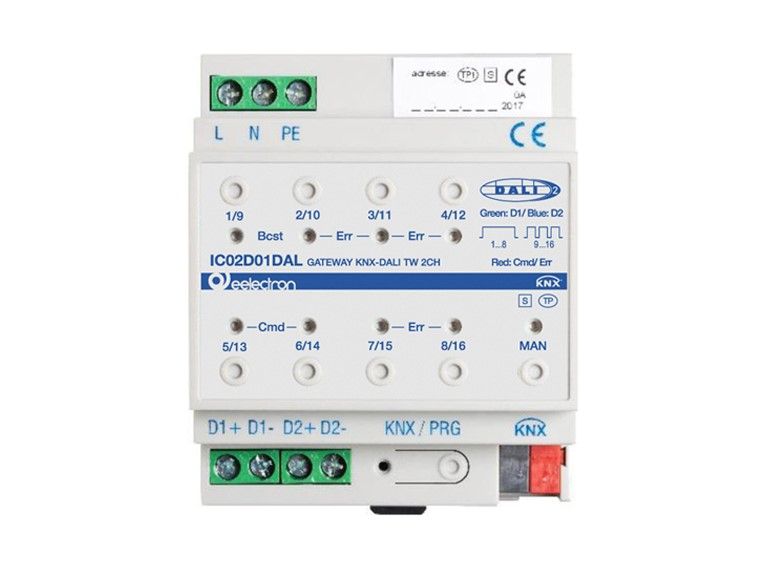

EELECTRON IC02D01DAL KNX DALI GATEWAY - FOR DYNAMIC WHITE - 2 CHANNELS

EELECTRON IC02D01DAL Product Description

The IC02D01DAL DALI Gateway is a device designed to interface a KNX installation with a DALI digital lighting system. This gateway is particularly suitable for controlling electronic ballasts and other DALI lighting applications.

Key Features

• Management of up to 128 drivers, with 64 drivers per channel.
• Individual or group control of drivers, with the possibility of creating up to 16 groups per channel.
• Compact size, ideal for mounting on a DIN rail.

Control Functionality

The gateway allows the switching and dimming of DALI devices. There are 6 different addressing methods that allow group or individual commands to be sent via KNX telegrams.

• Up to 32 independent DALI groups for group addressing.
• Up to 64 individual addresses through the 64 channels of the DALI device.
• Total control of all DALI devices connected through the broadcast function, without the need to program the DALI network.

Nutrition and Integration

The device is fully powered by mains voltage and generates the necessary voltage for the DALI network (typically DC 16 V).

Color Temperature Control

The gateway supports the control of DALI devices of the “Color Control” type (DALI Device Type 8), in particular in the “Tunable White (TW)” version. This allows you to control the color temperature of a lamp through relative or absolute variations, as well as through scenarios and effects.
