WEINZIERL 5208 KNX BAOS TP Module 838 - KBerry

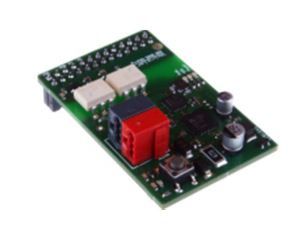

The WEINZIERL 5208 module, known as the KNX BAOS Module 838 KBerry, is a compact and reliable solution for integrating devices into the KNX system. Designed specifically for the Raspberry Pi, this module attaches directly to the Raspberry Pi's pins and communicates through a galvanically isolated serial port.

Key Features

• It integrates a certified KNX stack and can be configured with the ETS (Engineering Tool Software) software.
• It offers a generic ETS database that supports up to 1,000 data points.
• Individual ETS entries can be created using the KNX Manufacturer Tool (KNX MT).
• The KNX part of the KBerry module is powered by the bus voltage.

Raspberry Pi integration

The KBerry module is designed for easy integration with the Raspberry Pi, allowing a quick start in the development of KNX devices. The KDriveExpress SDK for Raspberry Pi is available as a free download, facilitating the immediate operation of the KNX BAOS 838 KBerry module.

Object Server

The module includes an object server that logically decouples the application from KNX communication. This allows the application to access the values of communication objects without knowing the KNX telegram formats or the KNX addresses used in the current installation.

Communication Functionality

• The module generates and sends group telegrams on its own.
• The received group telegrams are interpreted in the form and the values are stored in the addressed communication objects.

Rapid Development of KNX Devices

For a quick start in the development of KNX devices, it is recommended to use the KNX BAOS starter kit. The kit includes a development board and two KNX BAOS modules, along with a free demo project that implements the BAOS protocol and a simple application.
