EELECTRON ES01A00KNX KNX HOURLY/ASTRONOMICAL CLOCK

EELECTRON ES01A00KNX KNX HOURLY/ASTRONOMICAL CLOCK

MT Code
ELC_ES01A00KNX
Manufacturer Code
ES01A00KNX
Brand
EELECTRON
extra discount
Description

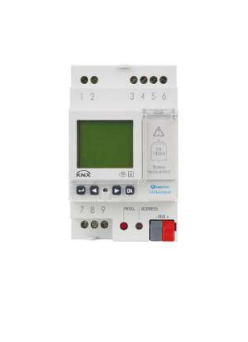

The EELECTRON ES01A00KNX product is a digital electronic clock designed for time management of electrical users, particularly suitable for domestic and industrial automation applications.

Key Features

This device allows hourly (daily, weekly, monthly or annual) or astronomical programming, offering high flexibility for different control needs.

Channel Scheduling

The ES01A00KNX can control 9 different channels on the KNX bus. The programming of channel 1 is also replicated on the relay integrated in the device, ensuring a consistent management of the functions.

Each channel can be associated with a different schedule, both hourly and astronomical, allowing a detailed customization of the settings.

Available Program Types

  • On/off
  • Impulse
  • Holiday
  • Random
  • Night (astronomical)

Integration with GPS Module

The device offers the possibility of connecting a GPS module (ES01A00ACC) via BUS, which allows the acquisition of the time and geographical position through the satellite system, ensuring high accuracy over time.

Additional Functions

  • Automatic daylight saving time update
  • Calculated sunrise and sunset time correction: ± 120 minutes
  • Random output switching function
  • Manually forcing channel state (temporary or permanent)
  • Possibility to copy programs from one channel to other channels

Memorizing Programs

The device can store up to 450 programs (900 events) spread over 9 channels.

User Interface

The interface is available in five languages: Italian, English, Spanish, German and French. In addition, it is possible to lock the keyboard with a password to ensure the security of the settings.

Backup battery

The device is equipped with a backup battery (type CR 14250) that can be replaced without disassembling the device, ensuring that the settings are preserved even in the event of a blackout.

Data Sheet
Codice Produttore ES01A00KNX
Brand EELECTRON
