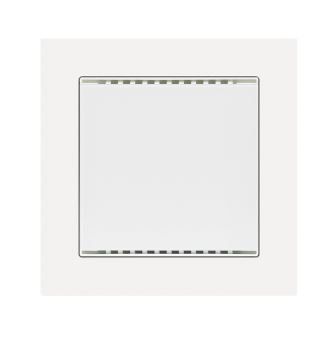

ELSNER 70626 KNX AQS/TH-UP gl - CO2/temperature/humidity sensor, white

MT Code: ELS_70626
Manufacturer Code: 70626
Brand: ELSNER

<p_The KNX AQS/TH-UP gl sensor, code 70626, is a specialized device for measuring CO2 concentration, temperature and humidity. This sensor is designed to be integrated into the KNX automation system and offers multiple functionalities for controlling and managing the indoor environment.

Technical characteristics

<p_The KNX AQS/TH-UP gl sensor is made of ABS plastic material and available in two colors: pure white (similar to RAL 9010) and black (similar to RAL 9005).

fitment

The sensor is designed for wall mounting, using a housing with a diameter of 60 mm and a depth of 42 mm, or a hollow wall housing for holes with a diameter of 68 mm.

Dimensions and Weight

The sensor dimensions are approximately 55 x 55 mm (width x height), with a mounting depth of approximately 8 mm. The base of the sensor measures approximately 71 x 71 mm. The total weight is about 53 grams.

Environmental Conditions

The sensor can operate in a temperature range from 0°C to +50°C and can be stored in a range from -10°C to +60°C. The maximum relative humidity allowed is 95%, avoiding condensation.

Measurement Features

The sensor measures the CO2 concentration in the range from 400 to 9000 ppm and the relative humidity in the range from 0% to 95%. It also calculates the dew point by combining temperature and humidity data.

Command Outputs

The sensor has control outputs with adjustable threshold values. Command outputs and other communication objects can be connected using AND and OR logic. In addition, an integrated variable comparator can compare and output values received through communication objects.
