ELSNER 70646 KNX AQS/TH-UP gl CH- pure white RAL 9010 KNX Senso

ELSNER 70646 Product Description

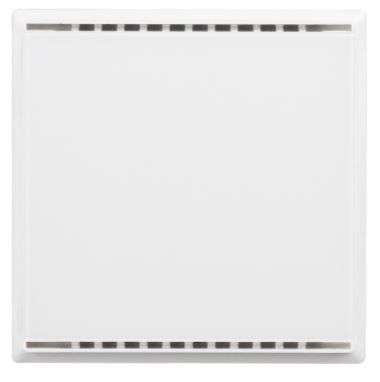

Elsner's KNX AQS/TH-UP gl CH sensor is a multifunctional device designed to measure CO2 concentration, air temperature and humidity, as well as calculate the dew point.

Technical characteristics

• Measurement of CO2 concentration: 400... 9000 ppm
• Measurement of air temperature and humidity (absolute and relative)
• Dew point calculation
• Possibility to receive external measured values via bus and to process them with your own data to obtain overall values (for example, room average)

Food and Communication

• Power supply: KNX bus voltage
• Bus current: maximum 20 mA
• Data output: KNX bus terminal connector +/-
• Communication objects: 196

Assembly and Protection

• Wall mounting (in Ø 60 mm socket, 42 mm deep, or in cable wall socket with Ø 68 mm hole)
• Degree of protection: IP 20
• Dimensions of the enclosure: approx. 55 x 55 mm (L x H), mounting depth approx. 8 mm, base approx. 71 x 71 mm (L x H)
• Total weight: about 53 g

Environmental Conditions

• Ambient operating temperature: 0... +50°C
• Ambient storage temperature: -10... +60°C
• Air humidity: maximum 95% RH, avoid condensation

Additional Features

• Switching outputs with adjustable threshold values
• Possibility to connect switching outputs and other communication objects using AND and OR logic gates
• Integrated drive variable comparator for comparing and outputting values received via communication objects

Material and Color

• Container material: ABS plastic
• Available colors: similar to RAL 9010 (pure white), similar to RAL 9005 (jet black)
