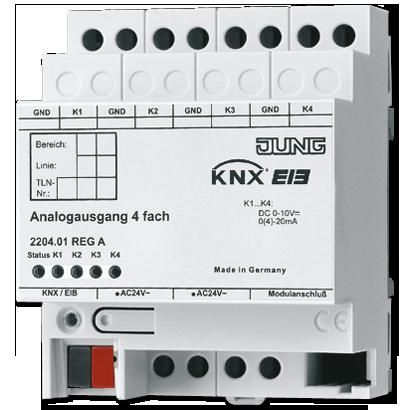

JUNG 2204.01REGA KNX analogue actuator - 4 outputs - for DIN rail mounting

JUNG 2204.01REGA KNX analogue actuator - 4 outputs - for DIN rail mounting

MT Code
JNG_2204.01REGA
Manufacturer Code
2204.01REGA
Brand
JUNG
extra sconto di benvenuto
Description
  • The analogue output converts measuring data received via KNX telegrams (1-byte and 2-byte telegrams) into analogue output signals.
  • The analogue output signals enable heating, ventilation and air conditioning units to adapt their output values to information received from the bus and thus to take part in control processes.
  • The outputs are software-parameterized for voltage or current signals.
  • Voltage signals: 0 ... 1 V, 0 ... 10 V
  • Current signals: 0 ... 20 mA, 4 ... 20 mA
  • Voltage outputs are monitored for short circuits.
  • The output state is indicated by status LEDs.
  • With the analog actuator module, 4-gang (ref.no. 2204.01 REGAM), the number of analog outputs can be increased from 4 to 8.
  • The connection is made via a system plug.
Data Sheet
Codice a barre 4011377999770
Codice Produttore 2204.01REGA
Brand JUNG
