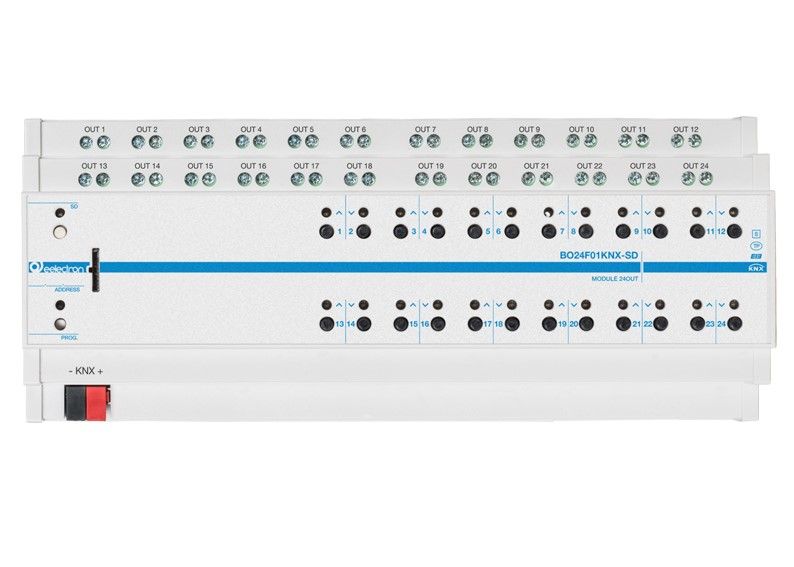

EELECTRON BO24F01KNX 24 OUT PLUS UNIVERSAL DIN MODULE

The EELECTRON BO24F01KNX device is a 24-channel KNX actuator, designed to be mounted on a DIN rail and integrated into building automation systems based on the KNX protocol. This actuator offers significant flexibility and versatility in its configurations.

Key Features

The BO24F01KNX has 24 16A-230V AC relay outputs, which can be configured in different modes to meet various control needs.

Configurations of Use

• 24 outputs for controlling lights and loads
• 24 channels for controlling PWM valves (solenoids)
• 12 channels for controlling shutters and blinds
• 12 channels for 3-way valve control
• 6 2-tube fan coil actuators/4 4-tube fan coil actuators

Special Features

It is possible to combine 3, 4 or 5 relays with logic interlock to control 4-tube or 3-speed fan coils, or combine groups of relays (up to 8) for special functions using logical interlock.

Version with microSD

<p-The BO24F01KNX-SD version includes a microSD card reader, which allows you to save the device's programming and restore it to an identical device, avoiding programming in the field or allowing a quick recovery in the event of a failure.

Applications

This device is ideal for residential, hotel and building applications, offering intelligent home automation solutions for energy savings and efficient plant management.
