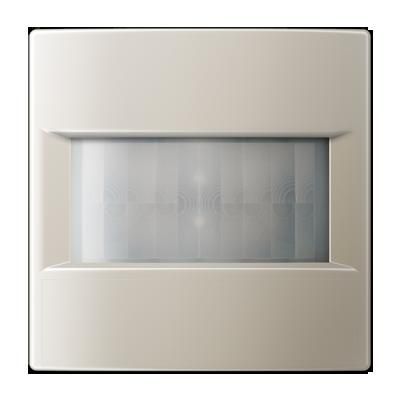

JUNG ES3181-1 KNX 180° detector for bus coupler 2073U - Universal with alarm signaling - lens type 1-10 m - stainless steel

KNX automatic switch 1.10 m standard - Motion sensor KNX ES 3181 – Jung – 4011377155268: Bus system, KNX yes, Bus system, radio KNX no, Bus system, radio bus no, Bus system, LON no, Bus system, Powernet no, Version Motion sensor, Mounting type Under-plaster, Material Plastic, Material quality Thermoplastic, Surface protection painted, Surface version matt, Color Stainless steel, Transparent no, With bus coupling no, Secondary input yes, Flush wall protection/Field monitoring rear no, Mode selector yes, Animal zone yes, Stair control yes, Adjustable response brightness yes, Teach function for response brightness yes, Self-learning switch-off delay yes, DALI-2 certified no, Optimal mounting height 1.1 m, Max range on one side 5 m, Max front range 8 m, Detection range diameter on the floor 10 m, Vertical detection angle 6 °, Horizontal detection angle 0..180 °, Number of channels 1, Min duration ignition 10 s
