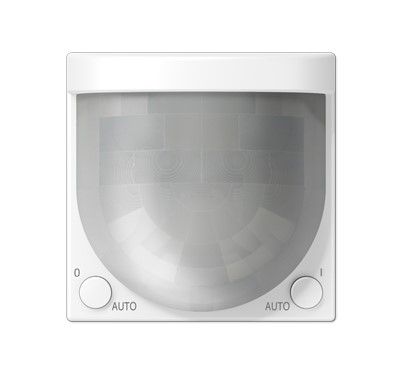

JUNG A3281WWM KNX 180° detector for bus coupler 2073U - Standard - lens type 2-20 m - matt alpine white

KNX automatic switch 2.20m universal - KNX movement sensor ME 3281-1 C – Jung – 4011377156272: KNX automatic switch 2.20m universal ME 3281-1 C bus system KNX, motion detector version, flush-mounting, material plastic, material quality thermoplastic, surface painted, surface finish matt, color brass, extension input, creep-by protection/rear field monitoring, operating mode switch, staircase monitoring, response brightness adjustable, teach function for response brightness, self-learning switch-off delay, optimal mounting height 1.1m, max. range to one side 6m, max. frontal range 8m, detection field diameter on floor 12m, vertical detection angle 0 ... 80°, horizontal detection angle 0 . .. 180°, number of channels 1, min. switch-on time 10s, KNX automatic switch 2.20 m, universal, with integrated brightness sensor, temperature sensor and status LEDs, ETS product family: physical sensors, product type: motion detector, automatic switching of lighting, dependent on thermal movement and ambient brightness, 2 PIR sensors, Off aisle functions: switching, value transmitter, light scene extension, staircase function and switching with forced position, operation of several devices as main and extension, manually adjustable sensitivity, adjustable switch-off brightness, manual switching on the device, detection field can be half dimmed (parameter setting), temperature measurement, manual operation with IR Remote control possible (item no. KNX PM FB IR), half of the detection field can be dimmed (parameter setting), 5 function blocks for motion detection, each with 2 outputs, switchable function blocks, e.g. for day/night operation, brightness sensor function with 3 limit values, alarm message when removed from the bus coupler, motion detection: mounting height: 2.20 m or 1.10 m, detection angle 180° and range (at a mounting height of 2.20 m): walking range: approx 8 x 8 m and cross-walking range: approx. 12 x 12 m, brightness sensor: measuring range: approx. 1 to 1000 lx, temperature sensor: measuring range: approx 3 mA and maximum 10 mA, relative humidity: 10 to 100% (no condensation), ambient temperature: - 25 to + 55 °C, storage and transport temperature: - 25 to + 70 °C, protection class: III, installation on bus coupler 3 Item no.: 2073 U, for needs-based control of lighting and other electrical consumers indoors
