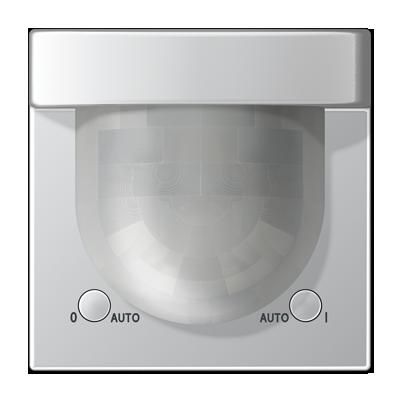

JUNG AL3281 KNX 180° detector for bus coupler 2073U - Standard - lens type 2-20 m - aluminum
- MT Code
- JNG_AL3281
- Manufacturer Code
- AL3281
- Brand
- JUNG
Description
KNX automatic switch 2.20m universal - KNX motion sensor AL 3281-1 AN – Jung – 4011377156241: Bus system, KNX yes, Bus system, radio KNX no, Bus system, radio bus no, Bus system, LON no, Bus system , Powernet no, Version Motion sensor, Mounting type Under-plaster, Material Plastic, Material quality Thermoplastic, Surface protection painted, Surface version matt, Color anthracite, Transparent no, With bus coupling no, Secondary input yes, Flush wall protection/Monitoring rear field yes, Mode selector yes, Animal zone no, Stair control yes, Adjustable response brightness yes, Teach function for response brightness yes, Self-learning switch-off delay yes, DALI-2 certified no, Optimal mounting height 1, 1 m, Max range on one side 6 m, Max front range 8 m, Detection range diameter on the floor 12 m, Vertical detection angle 0..80 °, Horizontal detection angle 0..180 °, Number of channels 1 , Min. duration 10 s
Data Sheet
Codice a barre | 4011377155527 |
---|---|
Codice Produttore | AL3281 |
Brand | JUNG |
