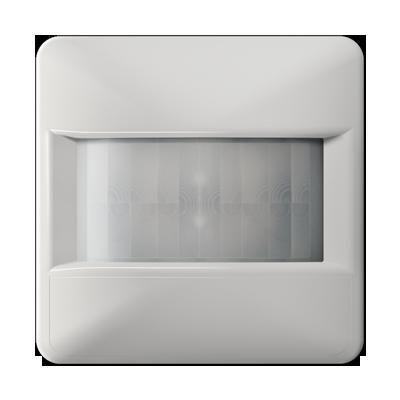

JUNG CD3181LG KNX 180° detector for bus coupler 2073U - Standard - lens type 1-10 m - light gray

Jung KNX automatic control switch CD 3181 LG Manufacturer :Jung Designation :KNX automatic control switch 1.10m Standard Type :CD 3181 LG KNX bus system :yes KNX bus system radio :no Bus system radio bus :no LON bus system :no Powernet bus system :no Version :motion detector Mounting type :flush-mounted Material :plastic Material grade :thermoplastic Surface protection :other Finish :glossy Color :grey RAL number (similar) :7035 Transparent :no With bus coupling :no Extension unit input :yes Creep protection/back field monitoring :no Operating mode switch :yes Animal track :yes Staircase monitoring :yes Adjustable response brightness :yes Teach function for response brightness :yes Self-learning switch-off delay :yes DALI-2 certified :no Optimum mounting height :1.1 m Max. range to one side :5 m Max. range to one side :5 m Max. range frontal :8 m Max. range frontal :8 m Detection field diameter on floor :10 m Detection angle vertical :6 ° Detection angle horizontal :0..180 ° Number of channels :1 Min. switch-on time :10 s Jung KNX automatic control switch CD 3181 LG: further details Standard for bus coupling unit 3 Art.No.: 2073 U ETS product family Phys . sensors Product type Motion detector Intended use Demand-led control of lighting and other electrical loads indoors Mounting on bus coupling unit 3 (Art.No.: 2073 U) Product features Automatic switching of lighting, depending on thermal movement and ambient brightness 2 PIR sensors Detection range 180° Integrated brightness sensor Switch-off brightness adjustable Output functions: Switching, staircase lighting function, switching with forced-control position, value transmitter, light scene extension unit, operating mode specification for room temperature controller Extension of the detection range by operating several devices as main and extension unit Sensitivity manually adjustable Status LEDs Manual switching on the device Detection field can be half dimmed (aperture or parameter setting) Current consumption KNX: 3 ... 10 mA Ambient temperature: -5 ... +45 ° C Storage/Transport temperature +45 °C Storage/transport temperature: -25 ... +70 °C Relative humidity: 10 ... 100 % (no condensation) Protection class: III Mounting height: 1.10 m Detection angle: 180° Brightness sensor Measuring range: approx. 1 ... 1,000 lx, EAN: 4011377155145.
