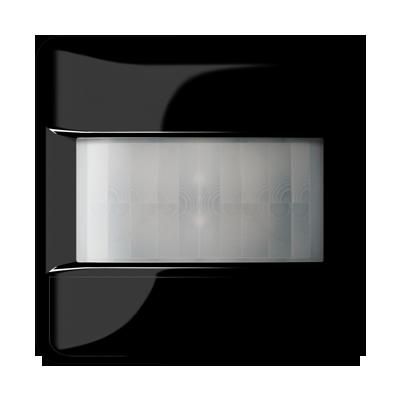

JUNG CD3181SW KNX 180° detector for bus coupler 2073U - Standard - lens type 1-10 m - black

Jung KNX automatic switch CD 3181 LG Manufacturer :Jung Designation :KNX automatic switch 1.10m Standard type :CD 3181 LG KNX bus system :yes Radio KNX bus system :no Radio bus system :no LON bus system :no Powernet bus system : no Version :motion detector Mounting type :flush Material :plastic Material grade :thermoplastic Surface protection :other Finish :gloss Color :grey RAL number (similar) :7035 Transparent :no With bus coupling :no Extension unit input :yes Creep protection/monitoring of the rear field: no Operating mode switch: yes Animal tracking: yes Staircase monitoring: yes Adjustable response brightness: yes Learning function for response brightness: yes Self-learning switch-off delay: yes DALI-2 certification: no Optimum mounting height:1.1mMax. Lateral flow rate: 5mMax. Lateral flow rate: 5mMax. frontal flow rate: 8mMax. front range:8 m Diameter of detection field on the floor:10 m Vertical detection angle:6 ° Horizontal detection angle:0..180 ° Number of channels:1 Min. switch-on time:10 s Jung KNX CD automatic switch 3181 LG: further details Standard for bus coupler 3 Art.Nr.: 2073 U Product family ETS Fis. sensors Product type Motion detector Intended use Control of lighting and other electrical loads indoors according to demand Mounting on bus coupler 3 (article no.: 2073 U) Product features Automatic switching of lighting, in based on thermal movement and ambient brightness 2 PIR sensors 180° detection range Integrated brightness sensor Adjustable switch-off brightness Output functions: switching, staircase light function, switching with forced position, value transmitter, light scene expansion unit, display of operating mode for room temperature controller Extension of the detection range by controlling multiple devices such as main and expansion units Manually adjustable sensitivity Status LED Manual switching on of the device Detection range can be dimmed halfway (opening or parameter setting) KNX power consumption: 3 ... 10 mA Ambient temperature: -5 ... +45 °C Storage/transport temperature +45 °C Storage/transport temperature: -25 ... +70 °C Relative humidity: 10 ... 100 % (non-condensing) Protection class: III Mounting height: 1.10 m Detection angle: 180° Brightness sensor Measuring range: approx. 1...1,000 lx, EAN: 4011377155145.
