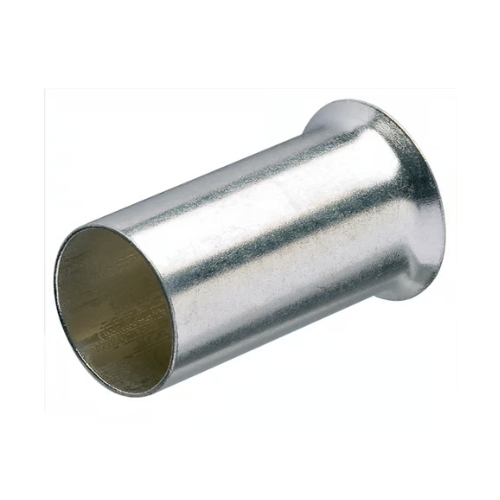

KNIPEX 97 99 399 Non-insulated socket terminals (50x)

KNIPEX 97 99 399 non-insulated cable ferrules are designed to provide safe and reliable electrical connections, particularly suitable for industrial and commercial applications.

Technical characteristics

• Material: E-Cu (electrolytic copper)
• Surface: electrolytically plated with tin, minimum plating thickness 3 µm
• Certification: UL-certified when used with KNIPEX crimping pliers (97 53 04, 97 53 08, 97 53 09, 97 53 14 and 97 43)
• Nominal size: 25 mm²
• Contents: 50 pieces per pack
• Not isolated

Standards and Compliance

• Compliant with DIN 46228
• REACH compliant: does not contain substances of high concern (SVHC)
• RoHS compliant

Use

Cable ferrules are small metal sleeves that are crimped at the ends of fiber cables to ensure a safe and reliable electrical connection. They are often used in situations where it is necessary to connect a large number of cables.

The ferrule is inserted into the terminal block or connector and crimped onto the cable using a special tool. This compresses the ferrule on the cable, creating a tight and secure connection, less prone to damage caused by vibration or movement.
