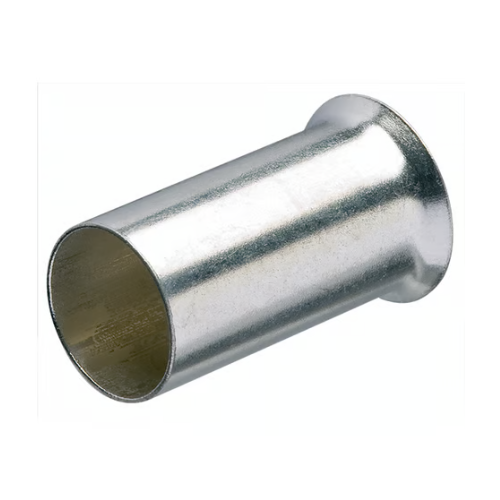

KNIPEX 97 99 395 Non-insulated socket terminals (200x)

Product Description

KNIPEX 97 99 395 non-insulated cable end ferrules are designed to provide safe and reliable electrical connections, particularly suitable for industrial and commercial applications.

Technical characteristics

These ferrules are made of electrolytically tinned copper with a minimum coating thickness of 3 µm. Their nominal size is 4 mm², corresponding to an AWG 12 gauge.

Material and Construction

Ferrules are made of E-Cu (electrolytically refined copper), ensuring optimal electrical conductivity and long life.

Use and Installation

The ferrules are inserted into the terminal blocks or connectors and crimped on the end of the cable using a special crimping tool. This process compresses the ferrule on the cable, creating a tight and secure connection, less prone to damage caused by vibration or movement.

Certifications and Compatibility

KNIPEX 97 99 395 ferrules are UL certified when used with KNIPEX crimping pliers (97 53 04, 97 53 08, 97 53 09, 97 53 14 and 97 43).

Package and Content

The product is available in packs of 200 pieces, offering a practical solution for projects that require a large number of connections.

• Nominal size: 4 mm² (AWG 12)
• Material: E-Cu (electrolytically refined copper)
• Coating: Electrolytically tinned with a minimum thickness of 3 µm
• Certification: UL
• Package contents: 200 pieces
