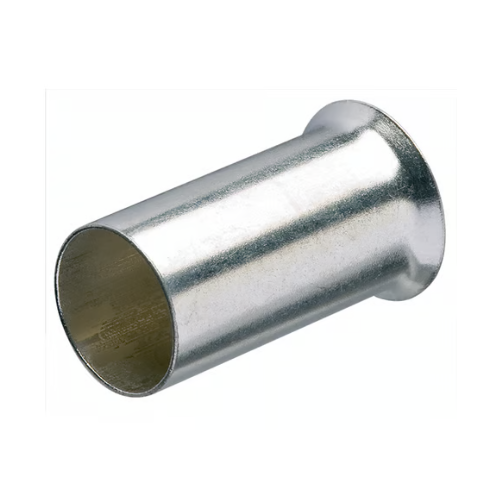

KNIPEX 97 99 394 Non-insulated socket terminals (200x)

The KNIPEX 97 99 394 product is a set of non-insulated cable ferrules, designed to ensure safe and reliable electrical connections.

Technical characteristics

These ferrules are made of electrolytically tinned copper, with a minimum coating thickness of 3 µm.

Material and Surface Treatment

The material used is E-Cu (electrolytically refined copper), with an electrotinned surface to improve electrical conductivity and corrosion resistance.

Certifications

KNIPEX 97 99 394 ferrules are UL certified, ensuring compliance with electrical safety standards.

Dimensions and Capacity

The ferrules have a nominal size of 2.5 mm², corresponding to 14 AWG, and are supplied in packs of 200 pieces.

Use

These non-insulated ferrules are ideal for applications that require a reliable electrical connection and are designed to be used with KNIPEX crimping pliers (97 53 04, 97 53 08, 97 53 09, 97 53 14 and 97 43).

Advantages

• They guarantee stable and safe electrical connections.
• They are easily installed with the appropriate crimping pliers.
• They offer good corrosion resistance thanks to the electrotinned coating.
