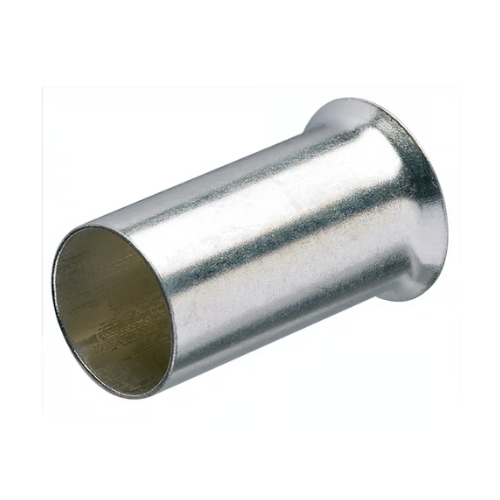

KNIPEX 97 99 393 Non-insulated socket terminals (200x)

KNIPEX 97 99 393 Product Description

KNIPEX 97 99 393 non-insulated cable ferrules are designed to ensure a reliable and long-lasting connection in electrical systems. Made from electrolytically tinned copper, these ferrules provide an optimal contact surface and protection against corrosion.

Technical characteristics

• Material: Copper (E-Cu)
• Surface Treatment: Electrolytic plating with a minimum thickness of 3 µm
• Certifications: UL-certificates, in compliance with DIN 46228
• Regulatory Compliance: REACH compliant, contains no hazardous substances (SVHC), RoHS compliant

Dimensional Specifications

• Nominal Section: 1.5 mm²
• AWG (American Wire Gauge): 16
• Length (L): 7 mm
• Diameter d1: 1.7 mm
• Diameter d2: 2.8 mm
• Thickness (S): 0.15 mm

Content and Quantity

• Quantity per pack: 200 pieces

These non-insulated ferrules are ideal for applications that require a solid and reliable connection, ensuring excellent electrical conductivity and long life.
