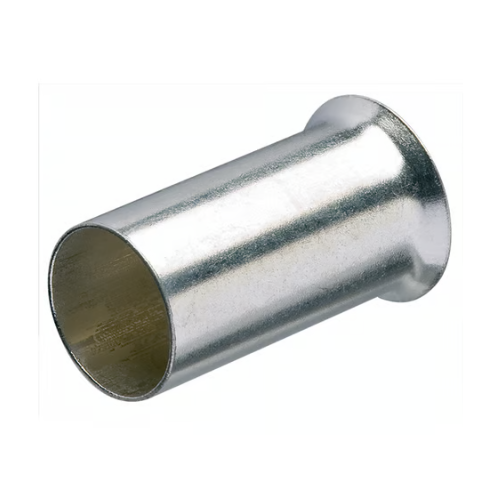

KNIPEX 97 99 392 Non-insulated socket terminals (200x)

KNIPEX 97 99 392 Product Description

The KNIPEX 97 99 392 product represents a high-quality solution for electrical cable connections. These non-insulated ferrules are designed to ensure secure and reliable connections.

Technical characteristics

• Material: E-Cu (electrolytic copper)
• Surface: electrolytically plated with tin, with a minimum coating thickness of 3 µm
• Certification: UL-certified
• Nominal dimensions: 1.0 mm² (18 AWG)
• Length: 6 mm
• Use: suitable for cables with a cross-section of 1.0 mm² (18 AWG)

Standards and Compliance

• Complies with DIN 46228
• Compliant with REACH regulations and does not contain dangerous substances (SVHC)
• Compliant with RoHS Directive

These non-insulated ferrules are ideal for applications that require a stable and durable electrical connection, ensuring excellent electrical conductivity and protection against oxidation.
