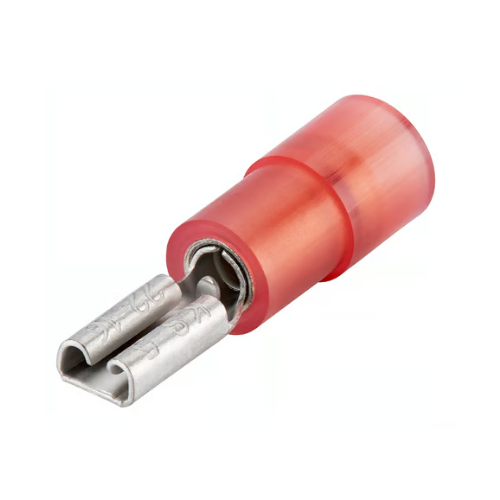

KNIPEX 97 99 020 Red female flat terminals (100x)

The KNIPEX 97 99 020 product represents a reliable and high-quality solution for electrical connections. These insulated blade terminals are designed to ensure a secure and stable connection.

Technical characteristics

• Material: made of brass, tin-plated for increased corrosion resistance and better electrical conductivity.
• Insulation: The insulating sheath is made of nylon, a robust material that is resistant to high temperatures.
• Maximum temperature: The terminals can operate at up to 105°C, making them suitable for a wide range of applications.
• Maximum electrical load: they support an electrical load of up to 600 V, ensuring high security in electrical connections.

Dimensions and Use

The KNIPEX 97 99 020 insulated blade terminals are 6.3x0.8 mm in size and are available in packs of 100 pieces. They are ideal for cabling with sections from 0.5 to 1 mm².

Color and Identification

The terminals are red, making it easier to identify and manage the wiring.

These insulated blade terminals are an excellent choice for electrical and electronic industry professionals, offering a combination of ruggedness, reliability and ease of use.
