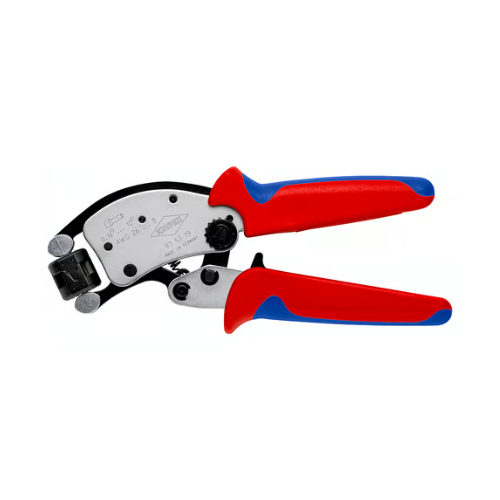

KNIPEX 97 53 19 Twistor16 socket terminal clamp

The KNIPEX Twistor® T, code 97 53 19, is a pair of self-regulating crimping pliers designed for crimping cable ferrules. This tool combines the functionality of a front and side crimper in a single tool.

Key Features

• The crimping head can be rotated 360° with 8 locking positions, allowing ferrules to be crimped from almost any working position.
• The trapezoidal crimping profile guarantees high crimping quality and covers a range of cross sections from 0.14 to 10 mm² (AWG 26 - 8).
• The grippers automatically self-adjust to fit different cable cross-sections.
• The crimping opening is accessible from both sides, allowing extra long ferrules up to 18 mm to be crimped in a single operation.
• It is also possible to crimp double ferrules up to 2 x 6 mm².

Mechanism and Handling

• The ratchet mechanism (unlockable) ensures a high and repeated crimping quality.
• The instrument is light and easy to handle, with manual force reinforced by a double-acting lever mechanism.

Materials and Construction

• The pliers and crimping head are chrome plated.
• The handles are equipped with multi-component grips.
• Weight: 486 g.
• Dimensions: 200 x 80 x 26 mm.

Compliance and Security

• Compliant with REACH and RoHS requirements.
• It contains hazardous substances (SVHC).
