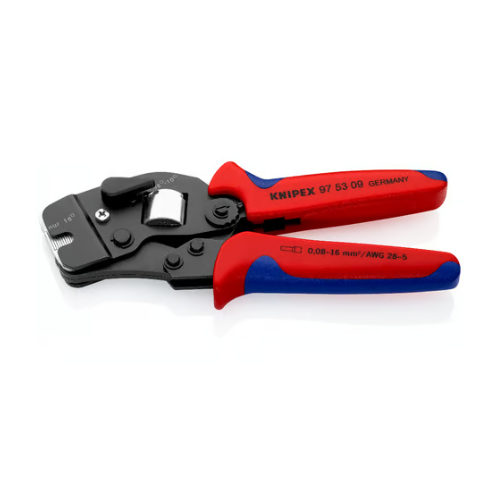

KNIPEX 97 53 09 Pliers for socket terminals

The KNIPEX 97 53 09 self-adjusting crimping pliers are designed to crimp ferrules (end sleeves) with precision and ease of use. These pliers are ideal for professionals who require high, repeatable crimping quality.

Key Features

The KNIPEX 97 53 09 pliers are made of high-quality, oil-hardened chrome-vanadium steel and have a burnished, atramentised, lacquered surface.

Self-Regulating Adaptation

These pliers offer a self-adjusting adjustment to the desired ferrule size, avoiding crimping errors due to the use of the wrong clamp.

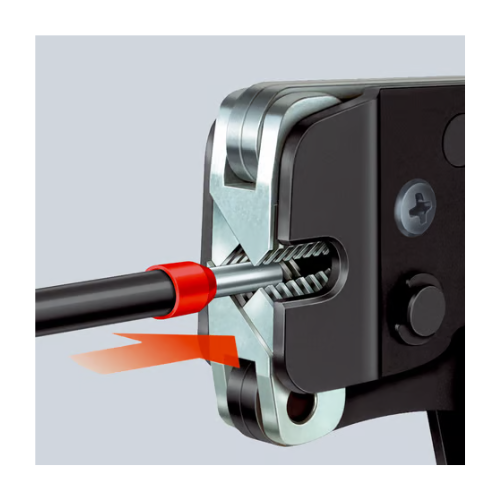

Front Insertion

The ferrules can be inserted frontally into the pliers, simplifying the crimping process.

Crimping Quality

The ratchet mechanism (self-unlocking mechanism) guarantees repeatable crimping quality and high precision. The pliers are factory calibrated to ensure accurate crimping pressure.

Transmission of Force

The spring lever mechanism optimizes force transmission, reducing fatigue during the operation.

Comfort and Maneuverability

The ergonomically designed shape and the low weight of the pliers ensure high comfort of use.

Technical Specifications

Crimping Capacity

• 0.08 - 10.0 mm² and 16.0 mm² in a single profile
• 28 - 6 AWG

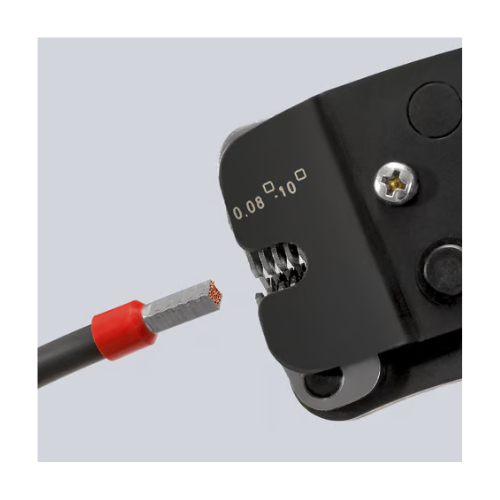

Crimping Area Selection

• Selector lever to set the crimping area to 0.08 - 10 mm² or 16 mm²

Handles

• Handles with multi-component covers

Dimensions and Weight

• Length: 190 mm
• Width: 20 mm
• Height: 23 mm
• Weight: 486 g

Standards and Compatibility

• REACH and RoHS compliant
• Approved for crimping according to UL in combination with KNIPEX 97 99 330 - 399 ferrules
