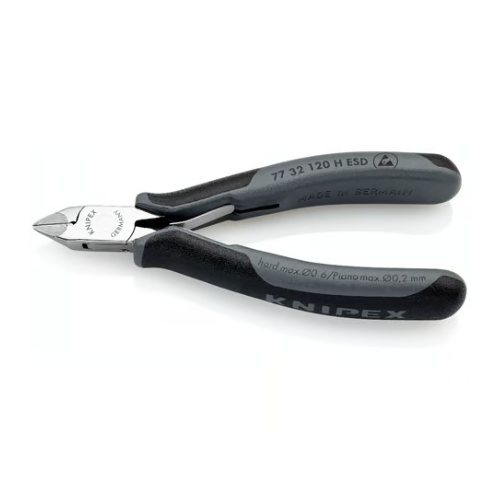

KNIPEX 77 32 120 H ESD Side cutter for electronics

The KNIPEX 77 32 120 H ESD electronic diagonal cutter is designed to meet the most extreme needs in the processing of hard or resistant materials, such as piano wires, nickel, tungsten and diode wires, frequently used in the electronic and aerospace industries.

Key Features

• Pointed-head tip with chamfer.
• It has a small chamfer.
• Tungsten carbide cutting edges welded on forged blocks, ensuring long life and consistently reliable cutting results.
• Hardness of carbide cutting edges: 80-83 HRC.
• Backless crate joint, sturdy and reliable.
• ESD dissipative handles, ideal for applications in environments sensitive to electrical discharges.

Technical Details

• Cutting capacity for medium hard wires: Ø 1.0 mm.
• Cutting capacity for hard wires: Ø 0.6 mm.
• Cutting capacity for piano wires: Ø 0.2 mm.
• Cutting capacity for soft wires: Ø 1.6 mm.

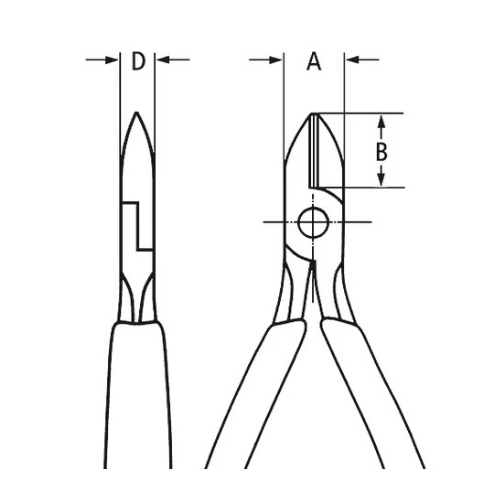

• Jaw length (B): 14 mm.
• Thickness of the jaws (joint) (D): 7 mm.
• Head width (A): 11 mm.
• Weight: 80 g
• Dimensions: 120 x 50 x 19 mm.

Regulations and Compliance

• Complies with DIN ISO 9654 and DIN EN 61 340-5.
• Compliant with REACH regulations, it does not contain dangerous substances (SVHC).
• RoHS compliant

The handles are equipped with multi-component grips, offering comfort and a secure grip during use. The mirror finish of the head and the sturdy construction ensure long life and consistent performance even in the most demanding applications.
