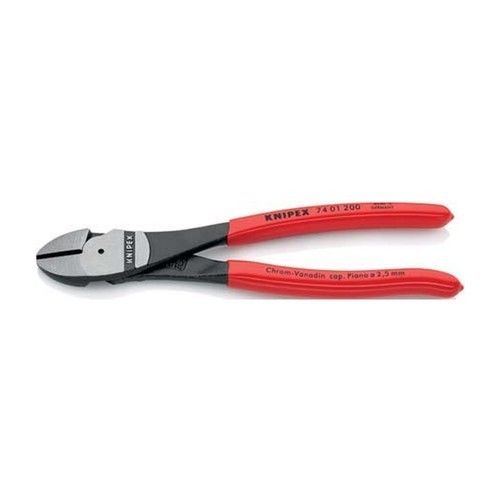

KNIPEX 74 01 200 SB Side cutter for mechanics

The KNIPEX 74 01 200 SB high lever diagonal cutters are designed for very hard and continuous use, offering excellent cutting performance with minimal effort.

Thanks to the optimal coordination of the angle of the cutting blades and the transmission ratio, these cutters guarantee high cutting performance with the minimum effort required. The cutting blades are induction-hardened, with a hardness of about 64 HRC, allowing the cutting of wires of all types, including plane wires (spring steel) up to a diameter of 2.5 mm.

Technical characteristics

• Material: chrome-vanadium steel, forged and hardened in several phases.
• Length: 200 mm.
• Weight: 263 g
• Head angle: 12° for greater freedom of hand movement in tight spaces.
• Handles with non-slip plastic coating for a secure grip.

Performance and Use

The KNIPEX 74 01 200 SB diagonal cutters are ideal for cutting copper or aluminum wires, as well as steel wires and plane wires. Their ergonomical-geometric design saves 20% energy compared to conventional diagonal cutters of the same length.

They are reliable tools for professional users, particularly appreciated by artisans and mechanics, and are frequently used in the automotive sector, on construction sites and in the industrial sector. Their compactness also makes them ideal for mobile applications.

Construction Details

• Forged pivot axis to ensure stability and durability.
• Finished surface: polished and textured black.
• Cutting capacity:
  • Flat wire (spring steel): up to 2.5 mm.
  • Hard steel wire: up to 3.2 mm.
  • Medium hardness wire (nail): up to 4.5 mm.

The precision of the processing and the quality of the steel produced in Germany guarantee a long life and a constant performance over time.
