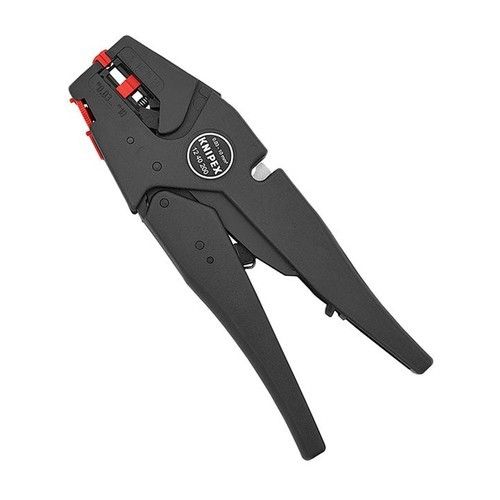

KNIPEX 12 40 200 SB Front stripper

The KNIPEX 12 40 200 SB is a high-quality tool designed for stripping the insulation of single, multicore and finely woven conductors. This insulation stripper automatically adapts to the respective cable diameter, preventing damage to the conductor.

Key Features

• Suitable for conductors with plastic or rubber insulation, including THHN cables.
• Stripping capacity from 0.03 to 10.0 mm² and 32 to 8 AWG.
• Adjustable cutting depth for different types of insulation by rotating the red wheel.
• Including cable cutter for copper and aluminum conductors, up to 10 mm² for multicore conductors and up to 6 mm² for single conductors.
• Smooth and quiet operation mechanism.
• Easily replaceable clamping blades and clamps.
• Body made of fiberglass reinforced plastic.
• Low weight of 202 g.

Specific Functionality

• Adjustable length stop to facilitate uniform stripping during repetitive work.
• Suitable for thin ribbon cables up to 10 mm wide in a single pass.
• Blades made of special oil-hardened steel.

Use and Benefits

This insulation stripper was developed specifically for solid, multicore, finely woven conductors with a single layer of insulation, making it ideal for electronic applications. Its ability to automatically adapt to different cable diameters significantly reduces the time and effort required for stripping, while ensuring conductor protection.

The smooth operating mechanics and low weight make this tool particularly ergonomic and easy to use, even for long periods of work.
