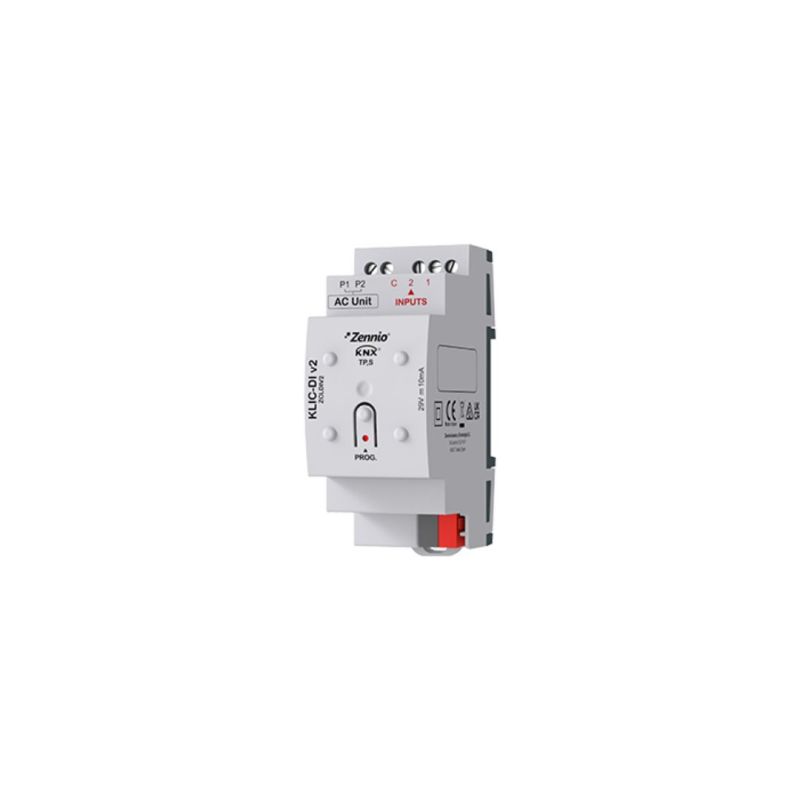

ZENNIO ZCLDIV2 KLIC-DI v2 - KNX-Daikin Industrial Gateway

MT Code: ZNN_ZCLDIV2
Manufacturer Code: ZCLDIV2
Brand: ZENNIO

<p/the ZENNIO ZCLDIV2, also known as KLIC-DI v2, is a gateway designed to integrate commercial and industrial Daikin air conditioning systems with the KNX home automation system. This device allows bidirectional communication between the KNX system and the air conditioning unit, allowing complete and synchronized control of the functions of the air conditioning system.

Key Features

The KLIC-DI v2 is powered entirely through the KNX bus, eliminating the need for an external power supply. The device connects to the KNX bus through a special terminal and can be configured using the ETS5/ETS6 software.

Inputs and Sensors

The gateway includes 2 analog-digital inputs that can be used to connect temperature probes, motion sensors, or clean contact binary inputs such as switches, sensors, or buttons.

Logical Functions

The KLIC-DI v2 has 10 logical functions that allow you to customize and optimize the control of the air conditioning system based on the specific needs of the installation.

Configuration and Installation

The configuration of the device takes place through the ETS software, where it is possible to set the specific functions required, such as the periodic “still-alive” notification, the management of inputs and the functions related to the gateway of the air conditioning unit.

The device includes a programming/test button that, pressed briefly, sets the device into programming mode, illuminating the associated LED red. If held down while connecting to the KNX bus, the device enters safety mode, with the LED blinking red every 0.5 seconds.

Connections and Interface

Connection to the KNX bus through a dedicated terminal.
Connection to the air conditioning unit via a 2-wire communication cable (P1/P2).
Inputs to connect external elements such as temperature probes, motion sensors, switches, sensors or buttons.

The KLIC-DI v2 is designed to be mounted on a DIN rail, occupying 2 units, and includes accessories such as the temperature probe and the motion sensor.
