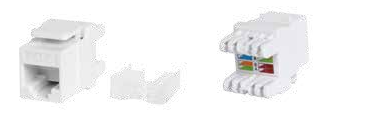

WP RACK WPC-KEY-6AU-180/WH KEYSTONE RJ45 CAT 6A UTP 180°, WHITE

- Transmission properties: Category 6a - Area of application: Up to 500 MHz, 10GBase-T - RJ45 female, 8P8C, unshielded - Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B - Dual IDC type, 180 degree - Dust cover for IDC Electrical propeties: - Voltage rating: 125 VAC RMS - Current Rating: 1,5 AMP - Contact resistance: < 100 MilliOhm - Insulation resistance: > 1000 MOhm @ 500 VDC - Dielectric strength: 750 VAC RMS 60Hz, 1 min Environmental properties: - Storage: -40o C to +85 oC - Operation temperature: -0o C to +70 oC Mechanical properties: - Housing material: PC - Insert material: Frame Retardancy PBT - PCB material: FR-4 T¡Ü1,6mm - Contact material: Phosphor bronze stamp PIN T¡Ü0,30mm - IDC Contact material: Phosphor bronze T¡Ü0,50mm with tin plating - Mating cycles RJ45: > 750 times - Clamp: > 200 times - IDC wire size: 23 26 AWG
