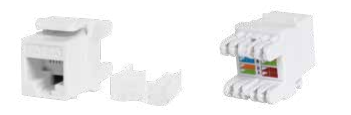

WP RACK WPC-KEY-6U-180/WH KEYSTONE RJ45 CAT 6 UTP 180°, WHITE

WP RACK WPC-KEY-6U-180/WH KEYSTONE RJ45 CAT 6 UTP 180°, WHITE

MT Code
WPN_WPC-KEY-6U-180/WH
Manufacturer Code
WPC-KEY-6U-180/WH
Brand
WP RACK
WP RACK
extra sconto di benvenuto
Description
- Transmission properties: Category 6 - Area of application: Up to 250 MHz, 1GBase-T - RJ45 female, 8P8C, unshielded - Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B - Dual IDC type, 180 degree - Dust cover for IDC Electrical propeties: - Voltage rating: 125 VAC RMS - Current Rating: 1,5 AMP - Contact resistance: < 100 MilliOhm - Insulation resistance: > 1000 MOhm @ 500 VDC - Dielectric strength: 750 VAC RMS 60Hz, 1 min Environmental properties: - Storage: -40o C to +85 oC - Operation temperature: -0o C to +70 oC Mechanical properties: - Housing material: PC - Insert material: Frame Retardancy PBT - PCB material: FR-4 T¡Ü1,6mm - Contact material: Phosphor bronze stamp PIN T¡Ü0,30mm - IDC Contact material: Phosphor bronze T¡Ü0,50mm with tin plating - Mating cycles RJ45: > 750 times - Clamp: > 200 times - IDC wire size: 23 26 AWG
Data Sheet
Codice Produttore WPC-KEY-6U-180/WH
Brand WP RACK
