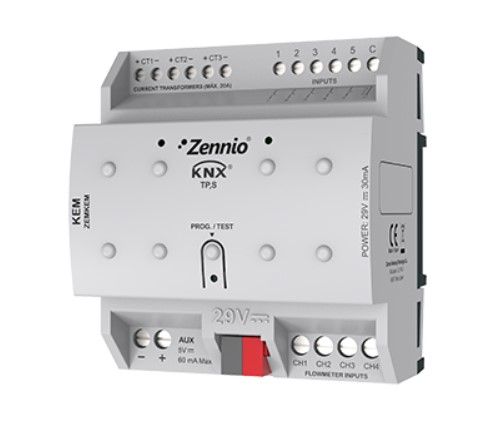

ZENNIO ZEMKEM KEM KNX Energy Monitor

Zennio's ZEMKEM is a KNX energy monitor designed for monitoring the consumption of electricity, water and heating/cooling energy. This device is ideal for home and industrial automation systems.

Key Features

The ZEMKEM has 3 channels for monitoring electricity consumption, with a maximum current of 20 A per channel. In addition, it includes 4 channels for connecting turbine flow meters, with a maximum current of 15 mA at 5 VDC.

Inputs and Sensors

The device is equipped with 5 analog-digital inputs for connecting flow and return water temperature probes. These inputs allow precise monitoring of the system's thermal conditions.

Logical Features and Notifications

The ZEMKEM includes 10 logical functions and consumption-based notifications, allowing you to configure personalized alerts and alarms based on specific user needs.

Power supply and assembly

The device has a 5 VDC power output to power the connected flow meters. It is designed for mounting on a DIN rail (4.5 DIN-Rail units).

Applications

• Monitoring electricity consumption up to 20 A per channel.
• Water flow monitoring using turbine flow meters.
• Flow and return water temperature monitoring.
• Management of up to 2 air conditioning systems.
• Configuring consumption-based notifications and alarms.
