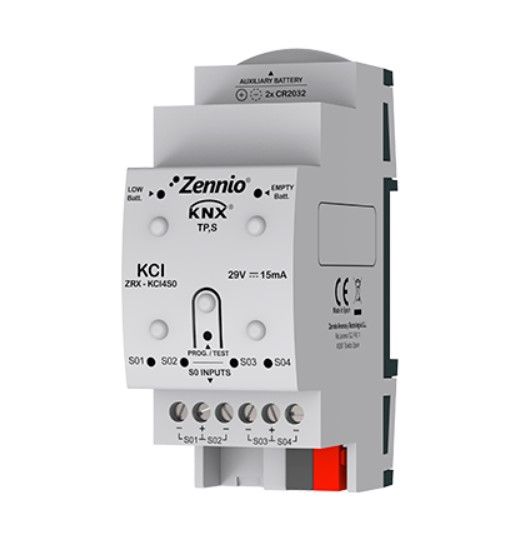

ZENNIO ZRX-KCI4S0 KCI 4 S0 - KNX interface for consumption meters

The ZENNIO ZRX-KCI4S0, also known as KCI (KNX Consumption Interface), is a KNX interface designed for monitoring four consumption meters with S0 pulse output. This device allows you to measure and monitor the consumption of electricity, water and gas within a KNX-based home or industrial automation system.

Key Features

The ZRX-KCI4S0 is specifically designed to integrate with consumption meters equipped with S0 pulse output, allowing the measurement of parameters such as energy and electrical power, volume and flow of water and gas.

Technical Specifications

• KNX power supply: 29VDC
• KNX power consumption: 13.2mA @ 29VDC
• Operating temperature: 0°C to 45°C
• Assembly: Independent assembly for control

Applications

This device is ideal for applications where precise and continuous monitoring of resource consumption is required. It is particularly useful in residential, commercial and industrial environments where energy efficiency and resource management are critical.

Integration with the KNX Bus

The ZRX-KCI4S0 integrates perfectly with the KNX bus, allowing the communication and control of consumer data within the automation system. This allows for centralized management and real-time data visualization.
