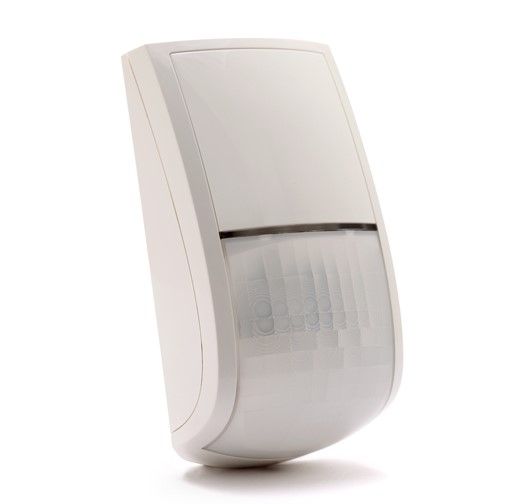

RISCO RK515DTBG30A BUS DT detector in K-BAND, Green Line PIR+MW with ACT Technology and Anti-Mask with active IR, zone input, 15 m coverage.
- MT Code
- RSC_RK515DTBG30A
- Manufacturer Code
- RK515DTBG30A
- Brand
- RISCO
Description
BWare™ is RISCO's new series of indoor detectors.
Thanks to the latest technologies they are equipped with, these elegant and simple to install rivals are ideal for commercial, institutional and residential installations.
BWare™ is extremely reliable thanks to the K-Band Microwave, in addition to other exclusive detection technologies.
The convex lens also provides higher sensitivity and a more uniform coverage of the detection area; it also has anti-opening and anti-removal tampers; they are gold-plated for maximum reliability.
Features
: K-band microwave for the highest- level of performance and immunity to false alarms.
- Plastic protection of the electronic board .
- Elegant design with single convex lens. Double MW and
- PIR technology. 15m coverage
- Anti-Cloak (ACT™) Green Line™ technology
- to disable the MW section with the system disconnected
- Anti-masking with active IR for G3
- Triple integrated EOL resistors, selectable through bridges, optoisolated relays immune to tampering with external magnets Tamper, anti-opening and anti-removal. Optional curtain and corridor lenses. The Bus models
- include an additional zone entrance for possible contact or other
- additional detector The installation on the Bus allows you to
- reduce cabling costs and offers all the benefits of remote management Technical Specifications
- DT sensor for indoor
- PD6662, EN50131-2-4: Grade 3 RISCO Bus:
- Models in the
- K-Band Microwave version
- Dual Technology MW and PIR Green Line™
- Anti-Cloak Technology (ACT™) to disable the MW
- function when the system is disconnected
- Advanced digital signal processing Real temperature compensation Up to 3 integrated EOL resistors and
- selectable by means of bridges .
- Anti-masking with active IR for G3 versions
- 15m coverage Optional lenses - 17m corridor and curtain, 12m
- Installation height 2.1m - 2.7m
- Optional accessory - Joint Product code: RK515DTG300B: BWare™ DT AM Grade 3 15 m -
- Relay; - RK515DTBG30A: BWare™ DT Grade 3 - BUS; - RK500Q0G300A: BWare DT Grade 3 - Quad; - RK515DTGL00B: BWare™ Grade 2 15 m - Relay; RK515DTBL00B: BWare™ DT Grade 2 15 m - BUS Wall/Ceiling joint
- BWare™: - RA51T000000A: EN50131 certification only for
- DT models
Data Sheet
| Codice Produttore | RK515DTBG30A |
|---|---|
| Brand | RISCO |
