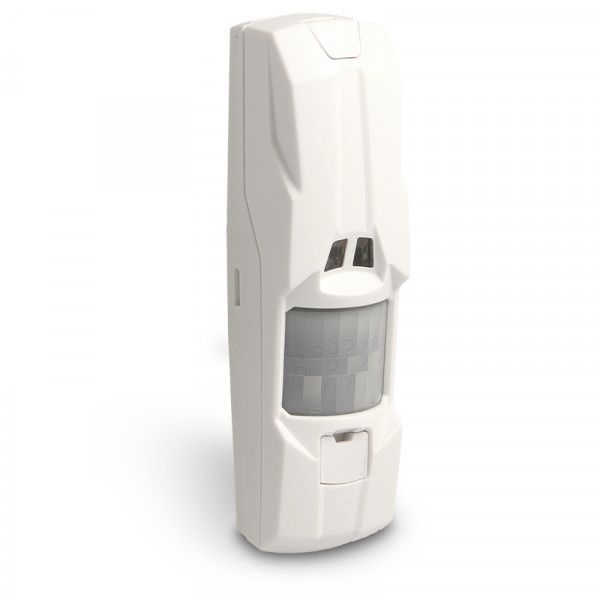

ELMO GRIFOX IP55 outdoor wired dual technology detector, 7 m range

IP55 wired outdoor dual-technology detector, 7 m range

GRIFOX is a dual-technology outdoor wired detector with a multifocal lens that combines refined aesthetics with high-performance and reliable detection characteristics. The compact, compact design and the watertight container with IP55 degree of protection make this sensor the ideal solution for the protection of outdoor environments in both civilian-residential and industrial environments. The maximum range of GRIFOX is 7 meters. The MW section provides coverage of 80° on the horizontal plane and 32° on the vertical plane, while the IR section has an opening of 81° and 18 sensitive zones arranged on 4 floors. GRIFOX has differentiated relay outputs for alarm, masking and 24 hour tamper for disorientation, opening and tearing. Through internal dip-switches, it is possible to set some functional parameters including flow rate and sensitivity. GRIFOX is a very flexible sensor ideal for protecting open spaces such as gardens, terraces and parking lots. It is certified IMQ-alarm EN50131-2-4
