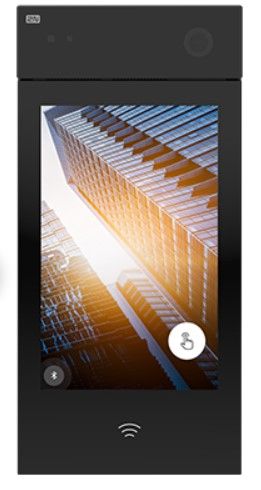

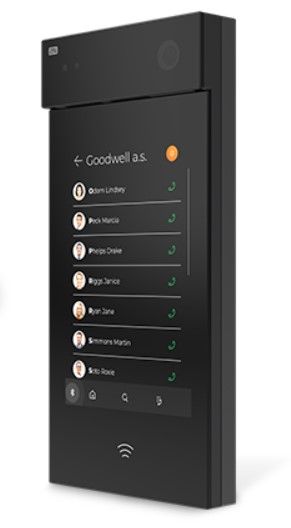

2N 9157101P-S IP Style Main Unit Secured

The 2N IP Style, model 9157101P-S, is a next-generation touchscreen door intercom, designed to offer high access control solutions for residential buildings, offices and gated communities.

Design and Features

This intercom features a 10-inch touchscreen display, featuring an elegant and premium design, making it a visually appealing point of contact for any input.

Processor and Camera

The 2N IP Style is equipped with the powerful AXIS ARTPEC-7 processor, which guarantees video quality comparable to the best outdoor IP cameras on the market. The Full-HD camera, with a maximum resolution of 2560x1920 pixels and a frame rate of up to 60 fps, includes features such as Wide Dynamic Range (WDR) and IR adaptive night vision, ensuring colorful images even in low light.

Audio and Communication

The intercom is equipped with two microphones and two 4W/4Ω speakers, with a maximum sound pressure level of 85 dB at 1 kHz and 1 meter away. Full-duplex communication with acoustic echo cancellation (AEC) and G.711, G.729, G.722 and L16/16kHz audio codec ensures clear, bidirectional communication.

Access and Security

The 2N IP Style includes an integrated 125 kHz and 13.56 MHz RFID card reader (optionally secure), as well as 2N's WaveKey technology for mobile access control. This technology allows the generation and distribution of mobile login credentials in a few moments, without the need to meet the user in person. In addition, QR codes can be used for temporary access, with configuration options to restrict access to specific areas, days, or number of uses.

Other Features

• SIP 2.0 and SIPS supported for integration with VoIP networks.
• Support for up to 10,000 address book entries and up to 20 user time profiles.
• H.264 and MJPEG video codecs, and G.711, G.729, G.722 and L16/16kHz audio codecs.
• HTTP server for configuration, SNTP client for server time synchronization, and RTSP server for video streaming.
• SMTP client for sending emails and TFTP/HTTP client for automatic configuration and firmware update.

Installation and Resistance

The intercom can be surface mounted or recessed, with dimensions of 170x355x40 mm for surface mounting and 170x355x22 mm for recessed mounting. The operating temperature ranges from -30°C to 60°C, and the net weight is 1.95 kg.
