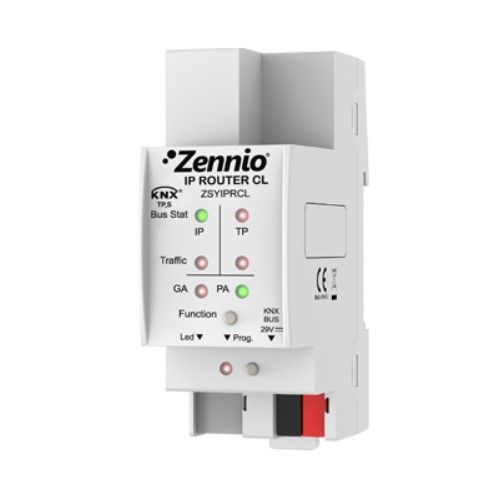

ZENNIO ZSYIPRCL CL IP Router - KNX-IP Router

Zennio's KNX-IP CL router, with reference code ZSYIPRCL, is a versatile device designed to operate as a line or zone coupler in an IP-based KNX network. It works in accordance with the KNXnet/IP Routing standard, allowing the integration of KNX devices with IP networks.

Main Features

• Support for KNXnet/IP Routing and KNXnet/IP Tunneling protocols, allowing up to 4 simultaneous connections.
• It does not require external power or PoE (Power over Ethernet).
• Support for long messages with a maximum length of 240 APDU bytes.
• 10/100 BaseT IP (Fast Ethernet) Ethernet interface.
• Parameterisable filter for 14/X/X addresses and later.

Technical characteristics

• Dimensions: 90 x 71 x 36 mm, occupying 2 DIN units.
• Mounting on a DIN rail (EN 50022) by pressure.
• Integrated KNX BCU.
• Compliance with CE directives.
• Button for manual activation/deactivation of functions.
• Visualization of the bus load diagram for the last hour.

Use

The KNX-IP CL router allows the programming or monitoring of KNX devices from the IP network, using PCs or BMS systems. This flexibility makes it an essential component for modern KNX installations.
