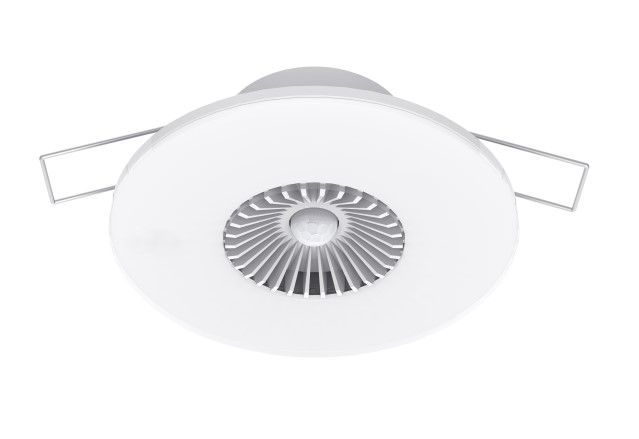

ELSNER 70669 Intra-Sewi KNX T and TH - Indoor sensors, white

MT Code: ELS_70669
Manufacturer Code: 70669
Brand: ELSNER

<p/the ELSNER 70669 product, called Intra-Sewi KNX TH, is an embeddable temperature and humidity sensor, designed to be integrated into domestic and industrial automation systems based on the KNX protocol.

Key Features

This device is available in two color variants: white (RAL 9010) and black (RAL 9005), and has a plastic and glass housing.

Measurements

The sensor measures air temperature and humidity, with the possibility of calculating mixed values combining internal and external measurements. The percentage of contribution of the measured values can be set by the user.

Temperature measurement with a range from -20°C to +60°C.
Measurement of relative and absolute humidity, with dew point calculation.
Check if the temperature and humidity values are within the comfort range according to DIN 1946.

Thermal and Humidity Control

The device includes a PI (Proportional-Integrative) controller for temperature and humidity regulation.

Heating (one or two stages) and cooling (one or two stages) control based on temperature, with adjustment according to separate setpoints or basic setpoints.
Humidity control with ventilation/air (one stage) or ventilation (one or two stages) functions.

Logic and Comparison

The sensor has advanced logic and comparison capabilities.

4 AND logic gates and 4 OR logic gates, each with 4 inputs. All switching events and 16 logic inputs (in the form of communication objects) can be used as inputs for logic gates.
2 comparators of drive variables for output of minimum, maximum or average values. 5 inputs each for values received through communication objects.
