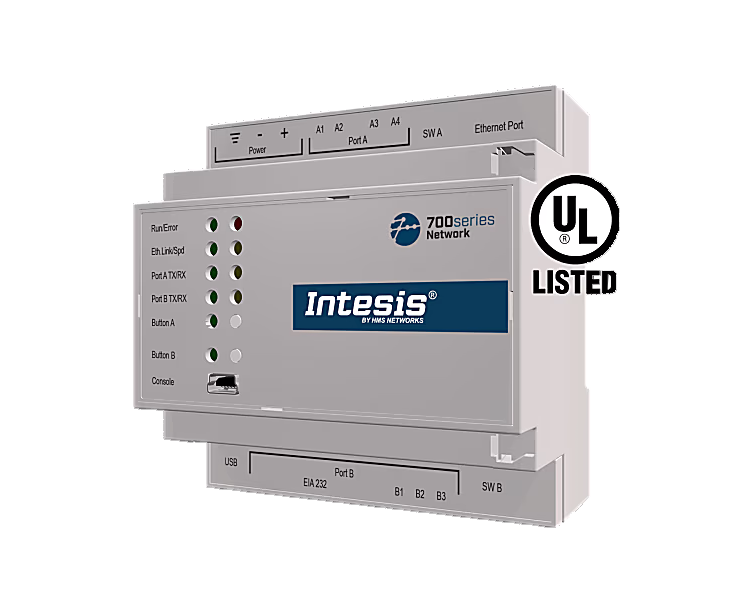

Inthesis IN703DAL0640000 - DALI-2 Protocol Translator

The Inthesis IN703DAL0640000 gateway is designed to integrate DALI systems with building automation standards based on BACnet or Modbus. This device is DALI-2 and BTL certified, ensuring high compatibility and reliability.

Key Features

• Support for 1 DALI channel, allowing the integration of up to 64 drivers/ballasts and 64 DALI-2 input devices (sensors, buttons, absolute inputs).
• Support for BACnet/IP and BACnet MS/TP protocols, as well as Modbus TCP and Modbus RTU.
• Integration of DALI/DALI-2 devices, such as occupancy and light sensors, buttons and absolute inputs, into BACnet or Modbus control systems.
• Local control functionality from the gateway for devices such as buttons, absolute inputs, and occupancy and light sensors.
• Support for RGB channel control and the tunable light function for human-centered lighting (HCL).
• Obtaining energy and diagnostic data directly from luminary devices.

Configuration and Commissioning

The configuration and commissioning of the gateway are managed through the Inthesis MAPS configuration tool. This tool allows you to create projects with predefined templates, configure the necessary parameters, enable the desired signals and verify the communication between the gateway and the system.

• Bus scan function to reduce commissioning time by discovering all DALI devices connected to the network.
• Using DIP switches for terminating and biasing configuration.
• Multiple connections: pluggable terminal block for DALI, Ethernet, pluggable terminal block for EIA-485, DB9M for EIA-232, and USB Type-A and Type-B ports.
• Support for up to 10,000 signals, with a guaranteed output current of 230 mA.
• DIN rail mounting housing.

Indicators and Power

The gateway includes a matrix of 10 LED indicators and an integrated power supply for the DALI channel, eliminating the need for an external power supply.

Applications

This gateway is ideal for integrating DALI lighting systems with building management systems (BMS) based on BACnet or Modbus, facilitating the centralized management of luminary devices and sensors.
