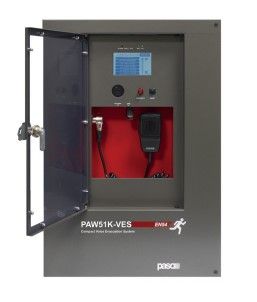

PASO PAW51K6-V Evac integrated wall system - 1000 W, 6 zones (A/B)

Integrated wall voice evacuation system. 6 250 W amplifiers for a usable total of 1000 W. 6 zones. emergency microphone. USB/SD card reader. 8 messages

The new PAW51K-VES series models are integrated voice evacuation systems for emergency systems, specially designed for wall mounting and equipped with a certified control unit in accordance with EN 54-16:2008/ EN54-4. These systems are able to manage, depending on the model, from 4 to 6 alarm zones through local commands, remote microphone stations and controlled inputs to be connected to a fire control unit.

1000 W/6 zones | double line (A+B)

Functional characteristics: Nominal audio power: 1000 W in total, freely distributed over areas with a maximum limit of 250 W (for each zone). - 4.3” backlit display with touch screen for selecting alert and evacuation zones and navigation for level adjustment, device configuration, fault display. - VVF handheld microphone on the front panel (included). - Sending pre-recorded EVACUATION and ALERT messages. - Sending of pre-recorded BROADCAST messages. - Listening to VVF messages on the front panel (included) pre-recorded on a local speaker. - No. 7 supervised input counts, configurable for the reproduction of evacuation and/or alert and/or broadcast messages on programmed areas or for the reset of messages. - No. 1 music input for sound sources. - No. 1 auxiliary input configurable as a music source, call with prior activation or call with automatic activation (VOX). - No. 3 configurable relay outputs. - Double A+B output per zone. - Event history (list of faults and/or alarms that occurred in the system). - Double LINK line to connect other PAW51K-VES and/or PAW5500-VES (up to 6 units in total). - Multi-language management software. - Protected local button for emergency installation of the system with relative LED light. - Front reset button. - Independent 3-band equalization for each zone. - 3-band equalization for each musical input. - Optional internal ACPAW-2IN card for the expansion of two additional musical inputs (EXT 1 and EXT 2). - Optional internal card with ACPAW-6IN DSP for the expansion of six additional musical inputs -. Possibility of Play background music in MP3 format via SD card or external USB device
