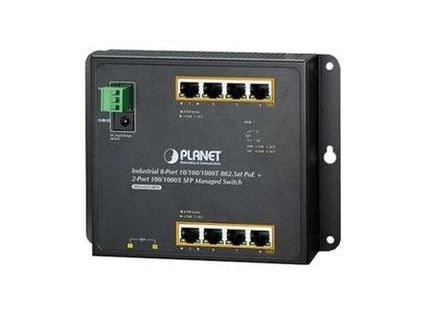

SKILLEYE WGS-4215-8P2S Industrial Managed Layer 2 Switch, 8 Ethernet ports
- MT Code
- SKL_WGS-4215-8P2S
- Manufacturer Code
- WGS-4215-8P2S
- Brand
- SKILLEYE
![SKILLEYE SKILLEYE](https://images.ctfassets.net/g6z2so3d6429/4QOztwb2QrswHyFmFLb5Jr/c1a394f7e37242085d9cb8885a36fe8b/skilleye_160x160.jpg?w=260&h=260&fm=webp&q=80)
![extra sconto di benvenuto](https://images.ctfassets.net/g6z2so3d6429/1nCII0xdbZgmEJPENaWasr/e37d4000d07fb07137d1d55247893c74/Benvenuto2024_.jpg?w=540&fm=webp&q=80)
Switch Industriale Managed Layer2, 8 porte Ethernet 10/100/1000Base-Tx POE+ (IEEE 802.3af / 802.3at) su connettore RJ45 + 2 slot SFP (supporta moduli SFP/miniGBIC 1000Base-SX e 100Base-FX). Sino a 30.8W per ogni porta PoE, max 200W in totale. Supporto VLAN, Spannning Tree Protocol, IGMP Snooping, QoS. Compliant IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX/100BASE-FX, IEEE 802.3z Gigabit SX/LX, IEEE 802.3ab Gigabit 1000BASE-T, IEEE 802.3x Flow Control and Back Pressure, IEEE 802.3ad Port Trunk with LACP, IEEE 802.1D Spanning Tree Protocol, IEEE 802.1w Rapid Spanning Tree Protocol, IEEE 802.1s Multiple Spanning Tree Protocol, IEEE 802.1p Class of Service, IEEE 802.1Q VLAN Tagging, IEEE 802.1x Port Authentication Network Control, IEEE 802.1ab LLDP, RFC 768 UDP, RFC 793 TFTP, RFC 791 IP, RFC 792 ICMP, RFC 2068 HTTP, RFC 1112 IGMP v1, RFC 2236 IGMP v2, RFC 3376 IGMP v3, RFC 2710 MLD v1, RFC 3810 MLD v2. Dimensioni (W x D x H): 178 x 25 x 134 mm. Installazione Wall Mount o barra DIN. Alimentazione 48-56 VDC/max 210W a pieno carico POE, doppia alimentazione per ridondanza con protezione da inversione di polarità (alimentatore non incluso); Temperatura di utilizzo -40-75 gradi C.
Codice Produttore | WGS-4215-8P2S |
---|---|
Brand | SKILLEYE |
Alimentazione | 48-56V DC |
