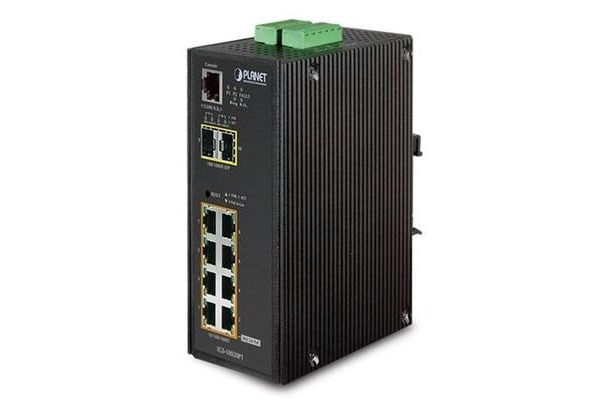

SKILLEYE IGS-10020PT Industrial Layer 2 Switch, 8 10/10 Ethernet ports

SKILLEYE IGS-10020PT Industrial Layer 2 Switch, 8 10/10 Ethernet ports

MT Code
SKL_IGS-10020PT
Manufacturer Code
IGS-10020PT
Brand
SKILLEYE
SKILLEYE
extra sconto di benvenuto
Description

Industrial Layer 2 Switch, 8 Ethernet ports 10/100/1000Base-Tx POE (IEEE 802.3af) on RJ45 connector + 2 SFP slots compatible with 100Base-FX and 1000Base-SX/LX/BX. Up to 15.4W for each PoE port, max 130W in total. Supports Ring mode. Support VLAN, Spanning Tree Protocol, QoS. Compliant IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX/100BASE-FX, IEEE 802.3z Gigabit SX/LX, IEEE 802.3ab Gigabit 1000T, IEEE 802.3x flow control and back pressure, IEEE 802.3ad port trunk with LACP, IEEE 802.1D Spanning Tree Protocol, IEEE 802.1w Rapid Spanning Tree Protocol, IEEE 802.1s Multiple Spanning Tree Protocol, IEEE 802.1p Class of Service, IEEE 802.1Q VLAN tagging, IEEE 802.1x Port Authentication Network Control, IEEE 802.1ab LLDP, IEEE 802.3 af Power over Ethernet, RFC 768 UDP, RFC 793 TFTP, RFC 791 IP, RFC 792 ICMP, RFC 2068 HTTP, RFC 1112 IGMP version 1, RFC 2236 IGMP version 2. Dimensions (W x D x H): 152 x 107 x 72 mm. DIN rail installation. Power supply 48VDC/31.9W (161.9W at full POE load), dual power supply for redundancy with reverse polarity protection (power supply not included). Aluminum case, IP30 protection rating. 2 alarm inputs, 2 OC alarm outputs, power failure signal. Operating temperature -40-75 degrees C.

Data Sheet
Codice Produttore IGS-10020PT
Brand SKILLEYE
Alimentazione 48V DC
