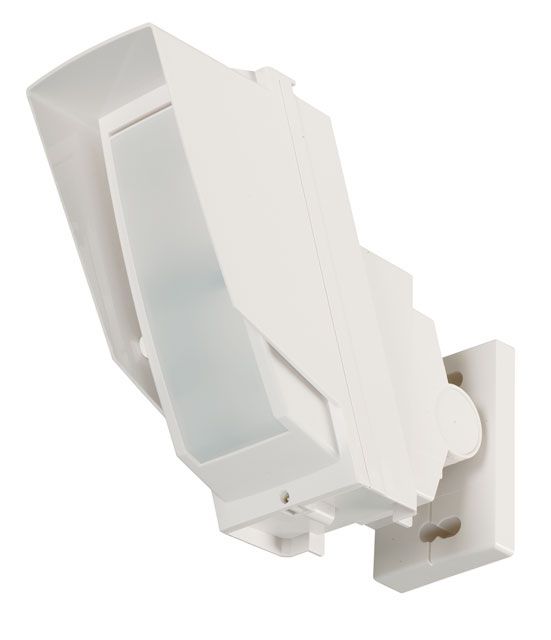

OPTEX OXHX80RAM HX-80NRAM Double PIR detector 24 m, low absorption, anti-masking

HX-80NRAM

The HX-80 series has a range of 24 m with a very narrow beam. It uses multiple beam technology with 20 high-density detection zones and a function that discriminates sudden temperature variations of moving objects.

It also features exclusive anti-masking technology that signals any attempt to blind or disturb the detection area. This is achieved with the continuous scanning of the infrared beams emitted and their possible deviation or dispersion.

PERFORMANCE

• Installation height 2.5m~3m
• Multiple zone detection technology with new generation pyroelement
• Anti-masking
• Double conductive shielding of the pyroelement
• Dual intelligent and logical signal analysis circuit:

            - advanced temperature compensation logic

            - logic for recognizing the swaying of vegetation

• 180° adjustable fixing bracket
