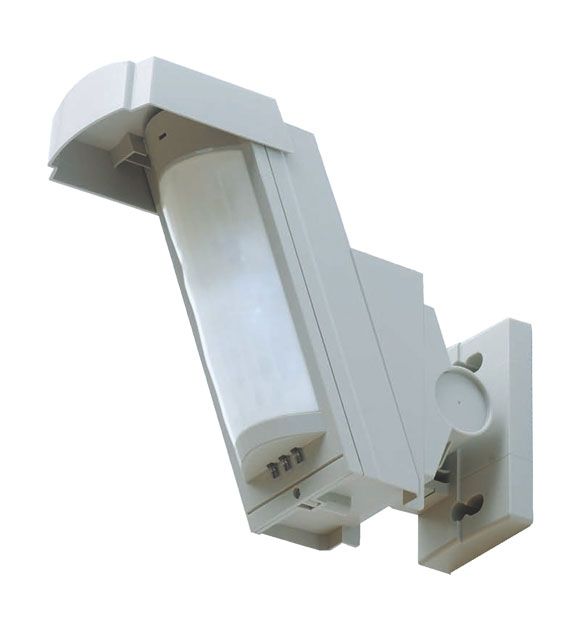

OPTEX OXHX40AM HX-40AM Outdoor dual beam passive infrared detector with anti-masking, m12 range, 85°

DESCRIPTION

HX-40AM uses multiple beam technology with 94 high-density detection zones and a function that discriminates sudden temperature changes of moving objects. It also features exclusive anti-masking technology that signals any attempt to blind or disturb the detection area. This is achieved with the continuous scanning of the infrared beams emitted and their possible deviation or dispersion.

PERFORMANCE

• Installation height 2.5m~3m
• Multiple zone detection technology with new generation pyroelement
• Anti-masking
• Double conductive shielding of the pyroelement
• Flow rate adjustment
• Dual intelligent and logical signal analysis circuit:
• – advanced temperature compensation logic
• – logic for recognizing the swaying of vegetation
• 180° adjustable fixing bracket and canopy included
