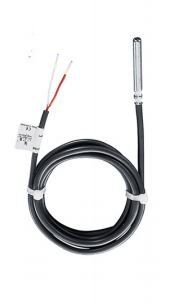

ARCUS-EDS 90100002 HTF PT1000 PVC

The ARCUS-EDS 90100002 product, identified as Neo-THC-X, is a sensor/controller integrated with a KNX bus coupler, designed for the measurement and control of critical environmental parameters.

Main Functions

This device is capable of measuring and controlling air temperature, humidity, CO2 and VOC (Volatile Organic Compounds) content.

Measurements

• Temperature: the measurement takes place through an external PT1000 sensor, with a range of -20°C to +80°C, an accuracy of ±0.3°C and a resolution of ±0.01°C.
• Humidity: the measurement range is from 0% to 95% relative humidity, with an accuracy of ± 3% between 20°C and 80°C and ± 5% outside this range.
• Calculated values: the device also calculates absolute humidity, dew point temperature and enthalpy.

Control

• Temperature and humidity control: the device can be configured for heating and cooling applications, with setpoints for Comfort and Standby.
• Fan control: fan control can be adjusted based on humidity limits and external inputs.
• Dew point detection: the device detects and adjusts the temperature to prevent condensation.
• Valve cleaning function: including a cleaning function for thermal valves.

Interface and Logic

• Binary Input/Output: four binary (floating) inputs/outputs that can be configured as outputs for LEDs or beeps.
• Logical blocks: four logical blocks for logically connecting internal and external signals, with logical functions “AND, OR, NOT, XOR” and arithmetic operations “+, -, *”.
• Light control: light control functionality such as a switch/button with on, off, double click and long click functions.
• Curtain and blind control: including management of curtains and blinds.

Technical characteristics

• Supply voltage: 21-32VDC on the KNX bus.
• Power consumption: about 240mW at 24VDC.
• Operating temperature: -20°C to +80°C.
• Operating humidity: 0-95% relative humidity without condensation.
• Protection class: IP20
• Case material: anodized aluminum (black or sand).
