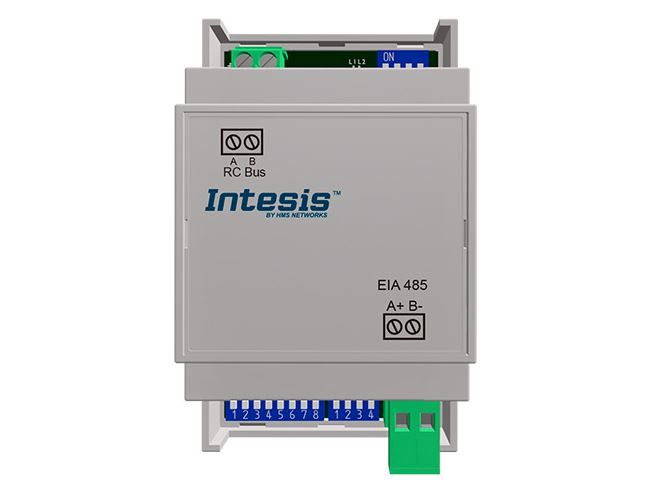

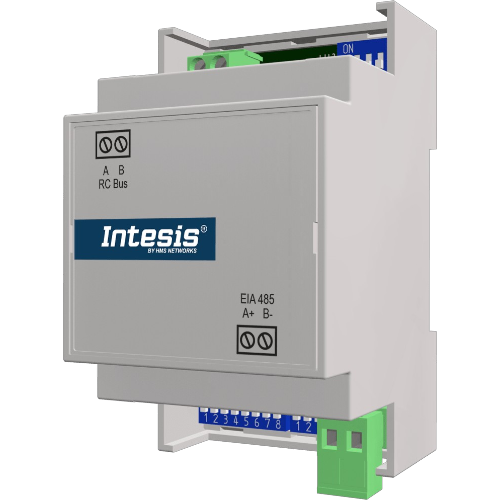

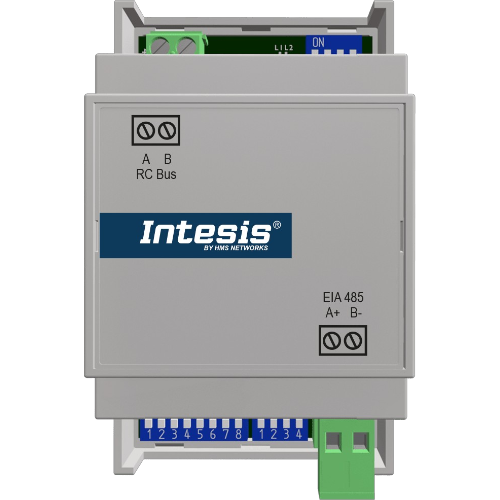

INTESIS INMBSHIS001R000 Hisense VRF systems at Modbus RTU interface - 1 unit
- MT Code
- INT_INMBSHIS001R000
- Manufacturer Code
- INMBSHIS001R000
- Brand
- INTESIS
The INTESIS INMBSHIS001R000 gateway is designed to establish full bidirectional communication between Hisense VRF systems and Modbus RTU (RS-485) networks.
Key Features
This gateway allows direct connection to indoor units, allowing the control of the main functions of the air conditioning, such as the operating mode, the fan speed and the temperature setpoint. In addition, it allows the monitoring of errors, alarms and some internal variables.
Installation and Configuration
The installation and configuration of the gateway is quick and simple. Just connect the gateway to the air conditioning unit and configure the DIP-SWs accordingly. There is no need for configuration software or power supply.
Modbus Register Mapping
The gateway uses consistent Modbus register mapping for all brands of air conditioners, which helps reduce the integration time of each project.
Functionality
- Control of the main functions of the air conditioner (operating mode, fan speed, temperature setpoint)
- Error and alarm monitoring
- Monitoring of some internal variables
- Direct connection to the indoor unit
- Quick and easy setup via DIP-SW
- No need for configuration software or power supply
Codice Produttore | INMBSHIS001R000 |
---|---|
Brand | INTESIS |
user manual inmbshis001r000
|
759.8 kB |
