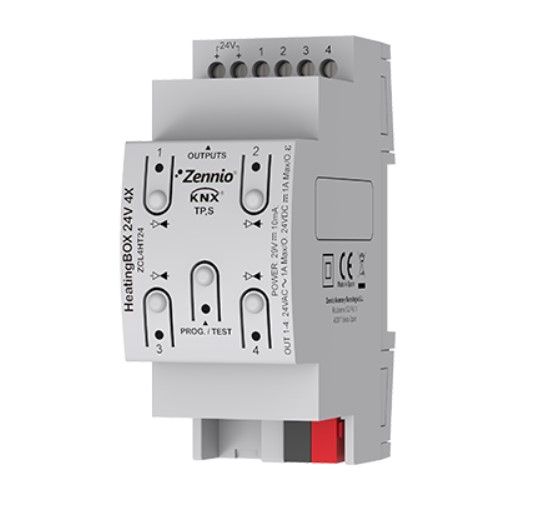

ZENNIO ZCL-4HT24 HeatingBox 24V 4X - Heating actuator for up to 4 24 VAC/DC outputs

<p/the ZENNIO ZCL-4HT24 product is a heating actuator designed for air conditioning systems based on water pipes. This device allows the control of up to 4 outputs for on/off valves operated at 24 VAC/DC.

Technical characteristics

The ZCL-4HT24 actuator uses triac with short circuit protection to ensure safe and reliable output management. Each outlet is equipped with an independent thermostat, allowing precise temperature control.

Functionality

• Control of up to 4 outputs for on/off valves at 24 VAC/DC.
• Independent thermostat for each output.
• Module with 10 logical functions.
• Manual control of outputs with LED status indication.

Installation and Use

The ZCL-4HT24 actuator has a single power input for all outputs and a common neutral, simplifying valve installation. This configuration reduces installation complexity and ensures greater efficiency in the heating system.

Applications

The ZCL-4HT24 product is ideal for applications in centralized heating systems, where precise and reliable temperature control is required. It is particularly suitable for water pipe-based heating systems in residential and commercial buildings.
