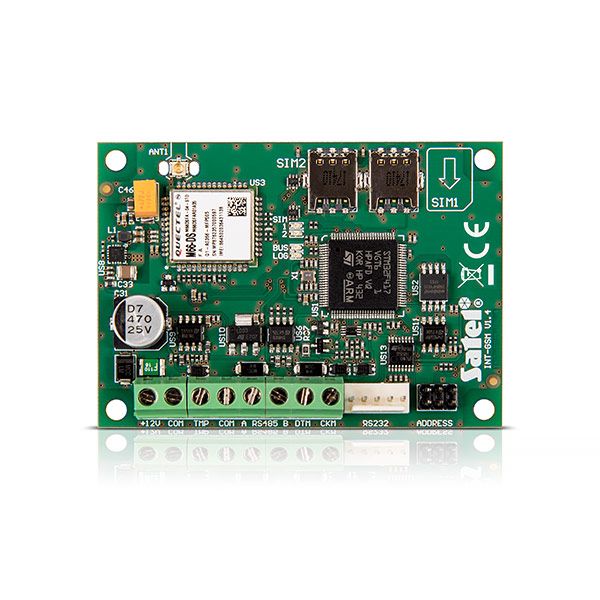

SATEL INT-GSM GPRS communication module on bus for INTEGRA control panels for mobile app and remote management

GPRS communication module on bus for INTEGRA control panels for mobile app and remote management (antenna included. without container)

INT-GSM is a GPRS communication module that allows INTEGRA series alarm control panels to communicate via the GSM network. The device connects to the alarm control unit directly to the keypad bus.

It supports two SIM cards, thanks to which it can receive messages and calls at the same time. All GPRS transmissions are encrypted in the AES-192 standard.

INT-GSM reports events to two monitoring stations (such as security institutions) via the GSM network. For signaling it uses GPRS and SMS messages, with the possibility of setting the priority for the use of individual communication paths.

Event notifications are created automatically based on the control panel's event memory. The module sends SMS notifications (up to 16 numbers) and, if used with the INTEGRA Plus alarm control panel, email notifications (up to 16 addresses). After installing the INTEGRA CONTROL app, PUSH notifications will be available on your smartphone or tablet.

INT-GSM, together with the INTEGRA series alarm control panels, can be managed remotely via:

A big advantage of the INT-GSM device is the possibility of working with the ETHM-1 Plus Ethernet module (connection to the RS-485 port). INT-GSM, together with the ETHM-1 Plus communication module, allows you to use the GSM/GPRS network as a backup vector. As regards event reporting, the priority can be set for the use of individual communication paths - Ethernet, GPRS and SMS - respecting the concept of Dual Path Reporting - as required by the EN 50136 standard.

Communication via the GSM network allows wireless connection between the alarm control unit and the computer, with the DLOADX and GUARDX programs installed, and therefore the configuration and management of the system, even from a remote location. The connection between the module and the PC can be established via the SATEL SERVER connection service.

Module software updates are done via the RS-232 port or remotely via GPRS, using UpServ software
