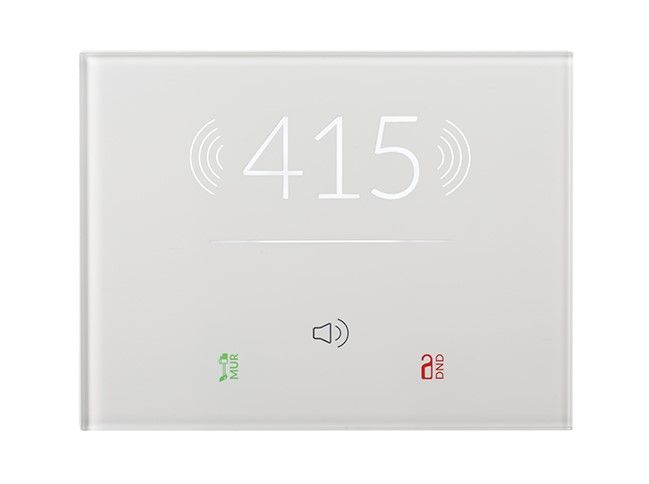

EELECTRON 9025GTR303L01 GLASS PLATE FOR 9025 TRANSPONDER READER - WHITE

EELECTRON 9025GTR303L01 GLASS PLATE FOR 9025 TRANSPONDER READER - WHITE

MT Code
ELC_9025GTR303L01
Manufacturer Code
9025GTR303L01
Brand
EELECTRON
EELECTRON
extra discount
Description
<p/the EELECTRON 9025GTR303L01 device is a KNX® thermostat designed for the control and management of heating and cooling systems in residential and commercial environments.

Key Features

This device integrates a two-stage thermostat with a built-in PI controller, allowing the control of heating, cooling, valves, 6-way valves and 2- and 4-pipe fan coils.

User Interface

The device interface includes 7 configurable capacitive buttons, which allow the management of various commands such as on/off, dimmers, shutters and blinds, as well as the execution and learning of scenarios and sequences of objects.

On the front side, there is a capacitive bar with swipe function for implementing programmable KNX functions. In addition, a freely configurable RGB LED bar allows the display of states or other quantities available on the KNX bus.

Connectors and Sensors

The device has an input on the back side that can be configured as digital or analog, allowing the connection of an additional NTC temperature probe (eelectron code TS01A01ACC or TS01B01ACC) to obtain a second temperature measurement.

A version with integrated temperature and relative humidity sensor is also available, which can be used to control actuators for the regulation of ambient relative humidity.

Installation and Compatibility

The device can be installed on boxes of 2 or 3 modules and is compatible with the main standards (Italian, German, English, etc.).

The glass cover is available in a version for residential or custom applications, with the possibility of backlighting personalized and interchangeable icons associated with the configured functions.

Logical Functionality

The device has 32 logical blocks for creating simple expressions with logical or threshold operators, or complex expressions with conditional algebraic operators. In addition, it integrates “Virtual Pocket Logic” and predefined algorithms for proportional temperature and humidity controls or dew point calculation.

Food and Communication

The power supply is via the EIB/KNX bus with a voltage between 21 and 32 Vdc. The device communicates with the KNX Data Secure protocol and can be configured using the ETS® application program.

Data Sheet
Codice Produttore 9025GTR303L01
Brand EELECTRON
