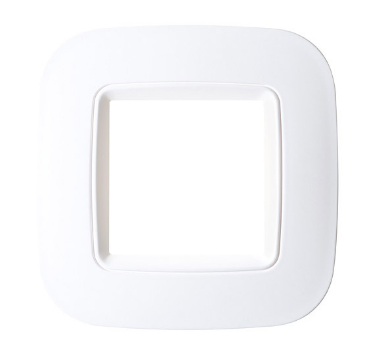

EELECTRON SK01A01ACC 2-MODULE ELECTA PLATE, WHITE

The EELECTRON SK01A01ACC 2-module board belongs to the Eelecta range and is designed to integrate perfectly into KNX home automation systems.

Key Features

• Manufacturer Code: SK01A01ACC
• Color: White
• Dimensions: 112 x 110 x 48 mm
• Assembly: Built-in standard Italian box with 2 or 3 modules, standard German or Swiss box

Power and Connections

• Main power supply: via the KNX bus with a voltage from 21 to 32V DC
• Current absorbed by the KNX bus: < 5mA
• Auxiliary power supply: 9 - 32V DC, absorbed current 55mA @24V DC
• Black/grey Wago connector for EIB/KNX bus connection and white/yellow Wago connector for auxiliary connections

Functionality

• 3.5” touch panel with intuitive user interface
• 6 programmable pages with 8 functions per page
• Password protection can be set by function
• Integrated buzzer for alarm signaling and front LED for signaling or light guide use
• Backup battery to maintain the hourly memory during a temporary blackout (24 hours)
• Integrated thermostat for temperature regulation
• Management of scenarios, shutters, lights, curtains and motors
• Integration with audio systems and external devices (TV, stereo, etc.)

Applications

• Management of 2- and 4-pipe fan coils, domestic systems and air conditioners
• Temperature adjustment and programming for each area of the house on an hourly, daily or weekly basis
