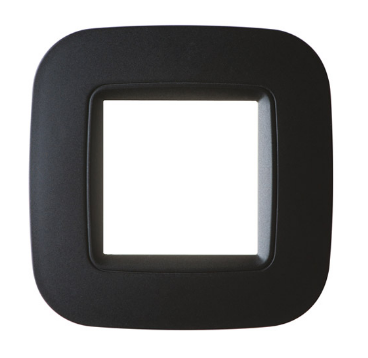

EELECTRON SK03A01ACC 2-MODULE ELECTA PLATE, MATT BLACK

The EELECTRON SK03A01ACC product is a touch panel plate from the Eelecta series, designed to integrate perfectly into home automation and home management systems.

Key Features

This device features a 3.5-inch color display, offering an intuitive and easy-to-use user interface.

Design and Assembly

The dimensions of the plate are 112 x 110 x 48 mm, making it compatible with most standard installations.

Power and Connections

The device can be powered via the EIB/KNX bus with a voltage between 21 and 32V DC, or through an auxiliary supply of 9 to 32V DC.

The current drawn by the KNX bus is less than 5mA, while the auxiliary power draws about 55mA at 24V DC.

The terminals and connections include a black/gray Wago connector for connecting to the EIB/KNX bus and a white/yellow Wago connector for auxiliary connections.

Functionality

The touch panel is equipped with an integrated thermostat, allowing precise temperature management in every area of the house.

It is possible to adjust and manage 2- and 4-pipe fancoils, domestic systems, air conditioners, and program the settings on an hourly, daily or weekly basis.

In addition, the device manages scenarios, shutters, lights, curtains and motors, offering complete control of the home environment from a single point.

Multifunctional Management

• Lighting management, including dimmer lights and RGB lights.
• Control of electrical loads with automatic shutdown depending on priority.
• Management of audio systems and external devices such as TVs and stereos.
• Configurable password protection for functions or entire pages.
• 6 programmable pages with 8 functions per page.

Signals and Security

The device includes an integrated buzzer for sound signals and a front LED for displaying the status or as a light guide.

In addition, it is equipped with a backup battery to maintain the hourly memory in the event of a temporary blackout of up to 24 hours.
