ELSNER 70268 Frame Corlo 2-gang- chrome matt Frame for mounting

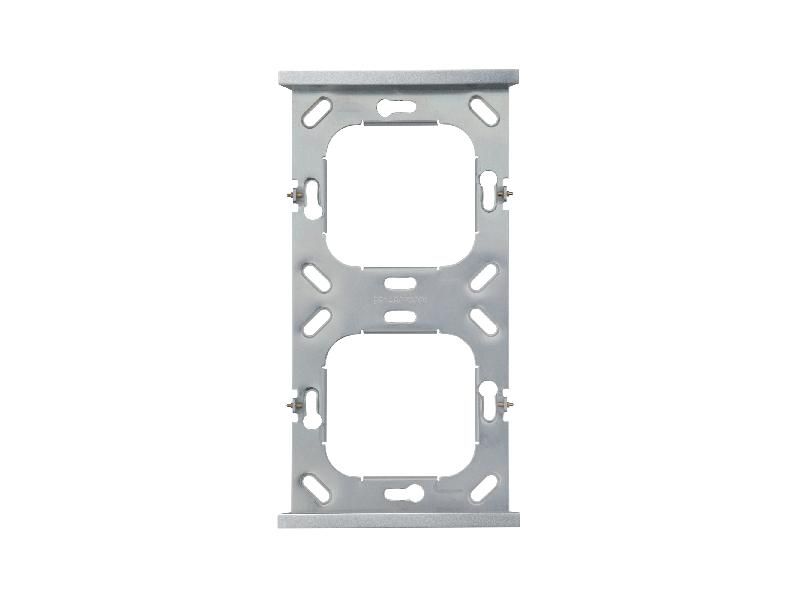

ELSNER 70268 - Wall Mount Frame

The ELSNER 70268 frame is designed for wall mounting of home and commercial automation systems. This frame is an integral part of the ELSNER product range, known for their quality and reliability.

Technical characteristics

The ELSNER 70268 frame is made of high-quality material, ensuring long life and resistance to environmental conditions.

• Finish: The frame is available in a matte chrome finish, offering a sleek and professional look.
• Configuration: This frame is specifically designed to be used with 2-gang buttons and switches, allowing efficient management of automation functions.
• Dimensions: The dimensions of the frame are approximately 164 x 121 x 29 mm (width x height x depth), making it suitable for wall mounting without taking up too much space.
• Power supply: The frame operates with a supply voltage between 12 and 28 V AC (or 12-40 V DC), ensuring flexibility in applications.
• Connections: The frame includes a KNX connector for data transfer, facilitating integration with other automation devices.

Assembly and Use

The ELSNER 70268 frame is designed for easy and quick assembly. The assembly guidelines provide for the insertion of cables through a special socket, simplifying the installation process.

This frame is ideal for automation professionals who require robust and reliable solutions for their projects.
