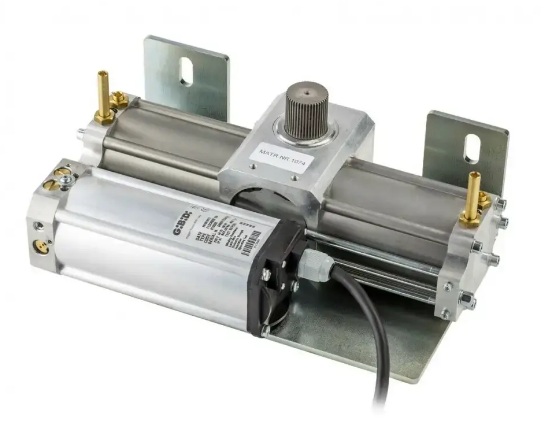

GIBIDI 81800 FLOOR 880 230Vac and 24Vdc hydraulic operators underground dedicated to swing gates
- MT Code
- GBD_81800
- Manufacturer Code
- 81800
- Brand
- GIBIDI
![extra sconto di benvenuto](https://images.ctfassets.net/g6z2so3d6429/1nCII0xdbZgmEJPENaWasr/e37d4000d07fb07137d1d55247893c74/Benvenuto2024_.jpg?w=540&fm=webp&q=80)
Description
230 Vac* operator - Max. opening 180 degrees underground hydraulic operators at
230Vac and 24Vdc dedicated to medium-sized and weighted swing gates. Suitable for both residential and intensive use.
EASY TO INSTALL
Thanks to the special self-supporting foundation box. Ambi-right motor. Unique fastening system of its kind that makes it possible to recover even errors when fixing doors.
QUIET AND FAST
Only 12 seconds to open the gate! Extremely quiet thanks to the use of selected materials and careful gear finishes. In the 24Vdc version, it is possible to adjust the opening speed.
TECHNOLOGICAL AND SAFE
FLOOR contains the best air-free closed-circuit hydraulic technology. Complete with speed and force regulators and also valves for the selection of reversible, irreversible or mixed modes. In the 24Vdc version, it is possible to adjust the anti-crush sensitivity for greater system safety as required by the EN12453 standard. European profile unlock key
. A COMPLETE AND RELIABLE RANGE
FLOOR is even more robust in the new version with an opening of up to 150° and 180°. It meets all the aesthetic needs for your gate and is reliable thanks to the use of high quality materials and extensive quality tests.
Use: INTENSIVE
Frequency of use: 80% Motor supply:
24 Vdc
Absorbed power: 120W Degree of protection:
IP67 Shaft rotation speed:
6°/s Max. thrust force:
320 Nm Force adjustment: ELECTRONIC Speed adjustment: YES Max. door length: 3.0 m
* Max. door opening:
150° Operating temperature: -20°C +60°C Encoder/End of
stroke:
ENCODER/End of stroke - Optional Lubrication:
GBD PH-03
OILOperator weight: 17 kg
Data Sheet
Codice Produttore | 81800 |
---|---|
Brand | GIBIDI |
