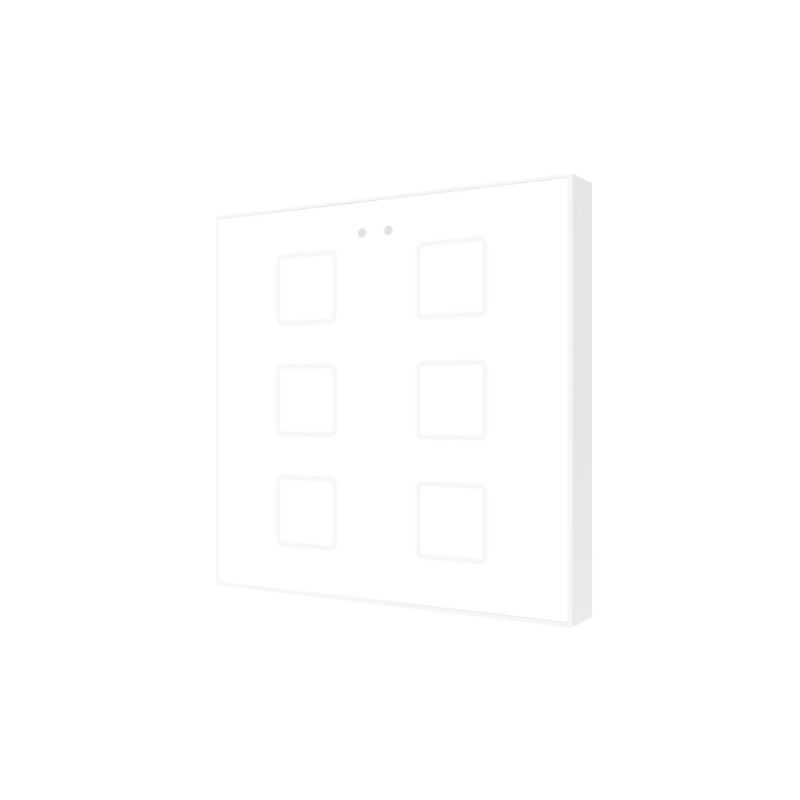

ZENNIO ZVIF6V2W Flat 6 v2 Backlit Capacitive Touch Switch, White

The ZENNIO ZVIF6V2W device belongs to the Flat family and represents an innovative solution for electrical control in home automation applications.

Key Features

• Printed glass touch panel, customizable through a web application with images, icons, texts or logos.
• 6 configurable touch areas.
• 2 configurable analog/digital inputs for free potential sensors, buttons, temperature probes or motion sensors.
• Built-in thermostat.
• Internal temperature sensor with a resolution of 0.1 °C and an accuracy of ±0.5 °C at 25 °C.
• Brightness and proximity sensor to adjust the brightness of touch areas.

Food and Consumption

• Typical supply voltage: 29 VDC SELV.
• Voltage range: 21-31 VDC.
• Maximum consumption at 29 VDC: 504.6 mW.

Technical Specifications

• Dimensions: 81 x 81 x 31 mm, with a 9 mm projection from the wall.
• Flush mount on wall box.
• Protection class: III.
• Type of operation: Continuous.
• Degree of protection: IP20, clean environment.
• Operating temperature: 0.. +55 °C.
• Storage temperature: -20.. +55 °C.
• Operation and storage humidity: 5.. 95%.

Connectivity and Installation

• TP1 bus connector for 0.8 mm Ø rigid cable.
• It does not require external power.
• Installation: Fix the metal plate in the square or round wall box using the box screws, making sure it is level.
• Connect the KNX bus and input terminals to the back of the device.
• Insert the device into its final position and verify that the force of the clips is sufficient to secure it.

Indicators and Sensors

• Programming LED to indicate programming mode (red).
• Illumination of touch areas based on their parameterization.
• Brightness and proximity sensor to adjust the brightness of the icons.
