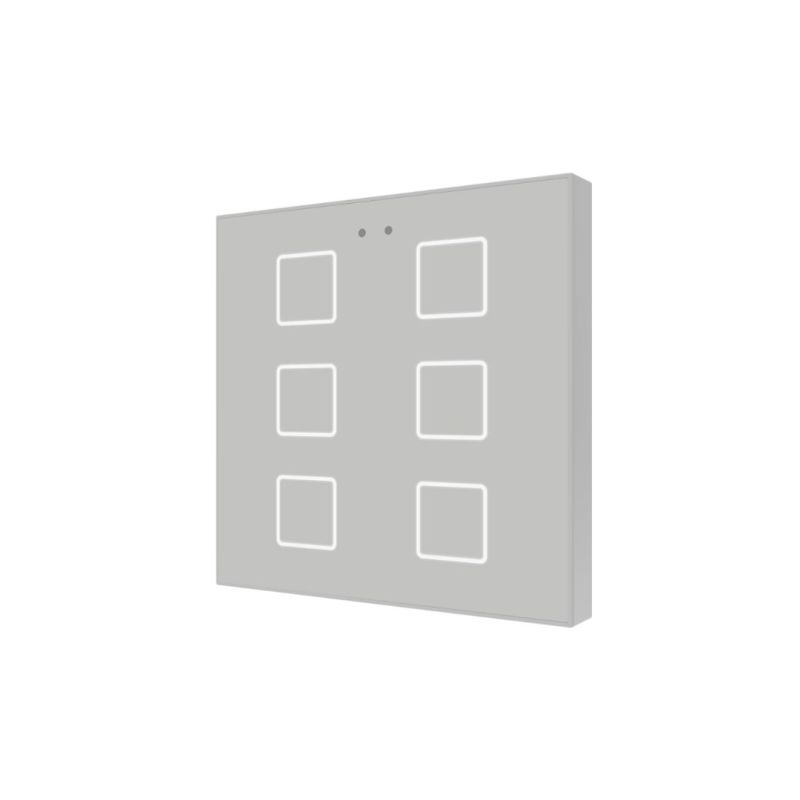

ZENNIO ZVIF6V2S Flat 6 v2 Backlit Capacitive Touch Switch, Silver

The ZENNIO ZVIF6V2S device is a backlit capacitive touch switch from the Flat family, designed to offer a customizable and versatile solution for controlling electrical installations.

Key Features

This switch is available in versions with 1, 2, 4 or 6 touch areas, all characterized by a flat design with a projection of only 9 mm from the wall.

Touch panel

The touch panel is made of tempered glass and can be customized with images, icons, texts or logos through a dedicated web application.

Sensors and Functionality

The device integrates an internal temperature sensor and a thermostat, as well as two analog-digital inputs that can be configured as binary inputs, sensors, buttons, temperature probes or motion detectors.

Brightness and Proximity Sensor

The backlighting of the touch areas automatically adapts to the ambient brightness and the proximity sensor, ensuring optimal visibility in any condition.

Food and Consumption

The switch operates with a typical supply voltage of 29 VDC SELV, with a voltage range between 21-31 VDC. The maximum consumption is 504.6 mW for the ZVIF6V2 model.

Installation

The installation takes place by recessed mounting on a square or round electrical box, using the supplied fixing clips.

Compliance and Protection

The device complies with CE, UKCA and RCM directives, and has IP20 protection, suitable for clean environments.

Temperature and Humidity

The switch can operate in a temperature range from 0 to +55 °C and in a humidity range from 5 to 95%.

Technical Specifications

• Dimensions: 81 x 81 x 31 mm
• Weight: 97 g
• Case material: PC+ABS FR V0, halogen-free
• Protection class: III
• Type of operation: Continuous
• Operation indicator: programming LED (red)

Inputs and Sensors

The two analog-digital inputs can be configured to accommodate different types of accessories, such as temperature probes and motion detectors.

• Input operation voltage: +3.3 VDC
• Input operation current: 1 mA @ 3.3 VDC (per input)
• Connection method: Pluggable screw terminals (0.2 Nm max.)
• Cable cross section: 0.2-1.5 mm² (IEC)/28-14 AWG (UL)
• Maximum cable length: 30 m
